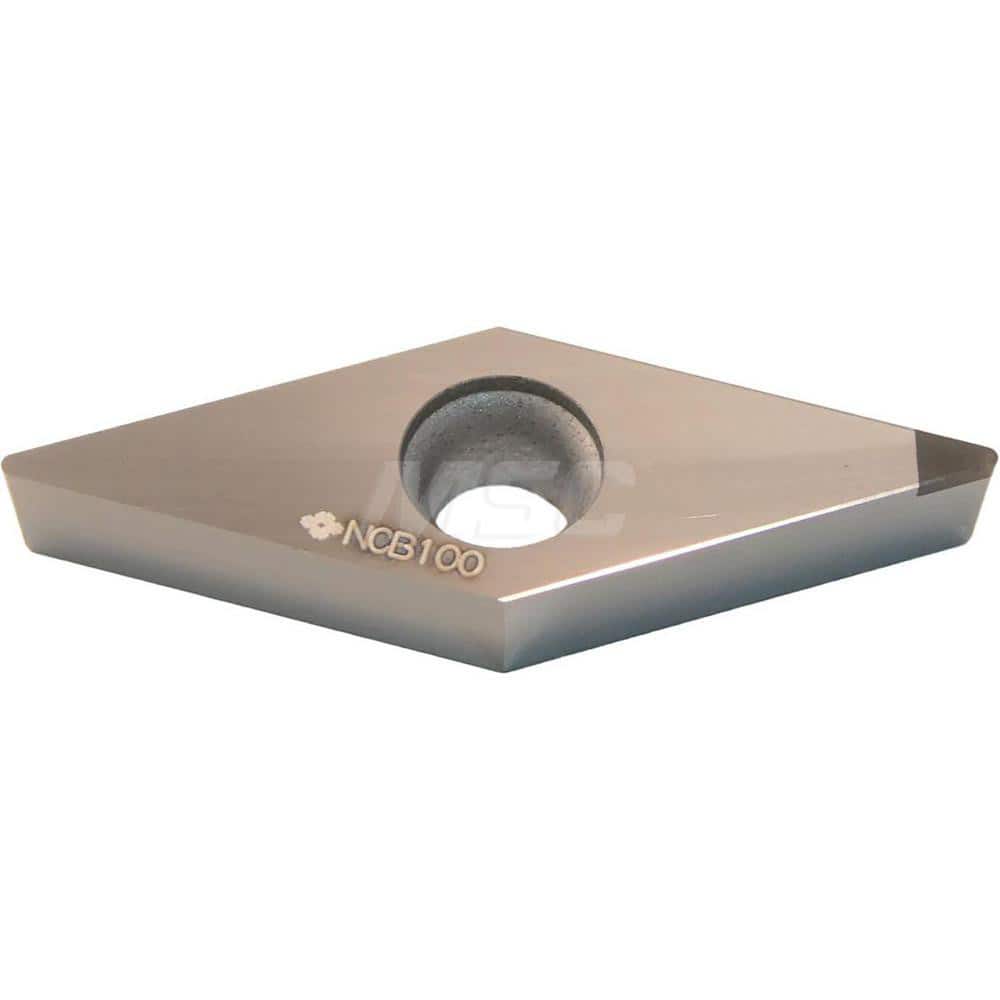

Turning Insert: NUVBGA222 NCB100, Cubic Boron Nitride Uncoated Finish, Neutral, 0.0669″ Long, 0.0315″ Corner Radius, 35.0 ° N/A Diamond, Series NCB100
Item #: 17067646
Brand: Sumitomo
Model #: 16P5FDR
Product Specifications
| Insert Style | VBG |
| Insert Shape Code | V |
| Insert Size Code | 222 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | NCB100 |
| Hole Diameter (Decimal Inch) | 2.8000 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | NCB100 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.0669 |
| Insert Length (mm) | 1.70 |
| Iso Code | NU-VBGW110308 |
| Manufacturers Catalog Number | NUVBGA222-NCB100 |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
