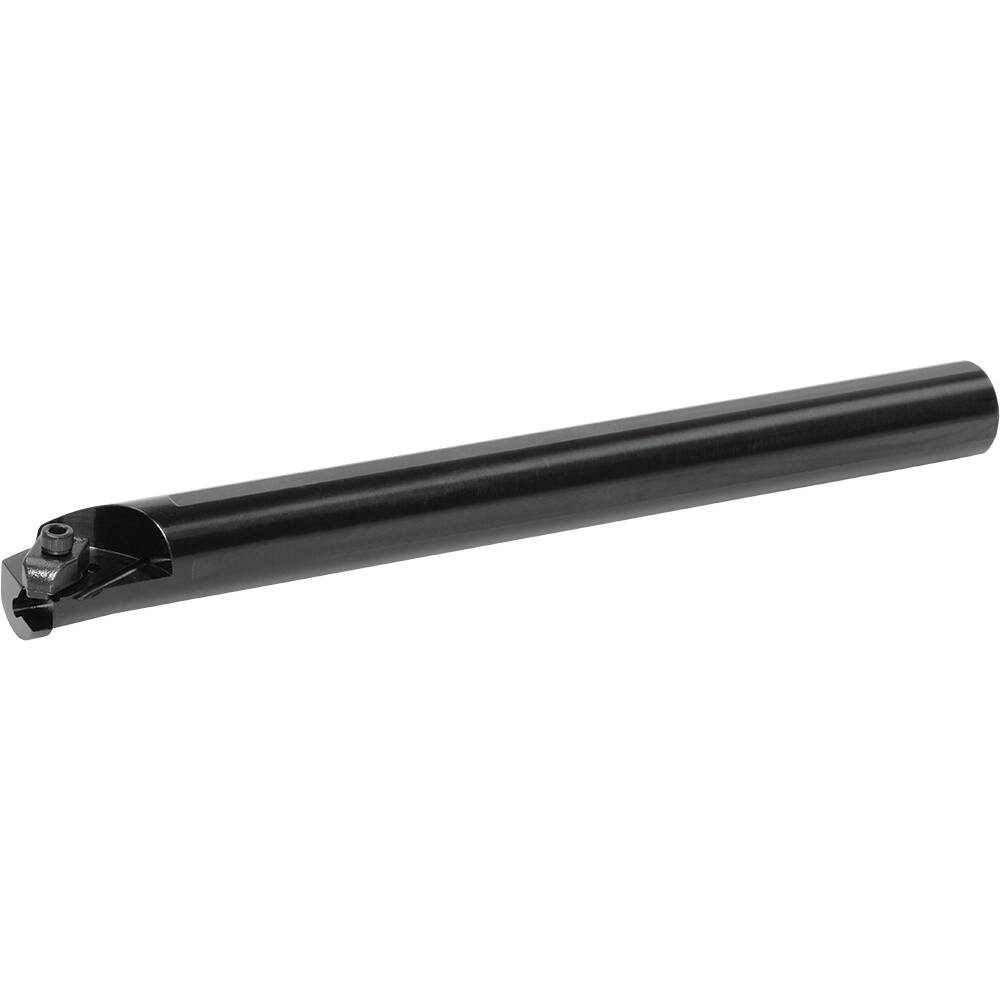

Kyocera - Indexable Grooving Toolholders; Internal or External: Internal ; Toolholder Type: NonFace Grooving ; Hand of Holder: Left Hand ; Maximum Depth of Cut: 0.0098 ; Maximum Depth of Cut (Inch): 0.0098 ; Maximum Depth of Cut (Decimal Inch): 0.0098
Item #: 17120544
Brand: Kyocera
Model #: 8604027
Product Specifications
Indexable Grooving Toolholders; Internal or External: Internal ; Toolholder Type: NonFace Grooving ; Hand of Holder: Left Hand ; Maximum Depth of Cut: 0.0098 ; Maximum Depth of Cut (Inch): 0.0098 ; Maximum Depth of Cut (Decimal Inch): 0.0098
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut | 0.0098 |
| Maximum Depth of Cut (Inch) | 0.0098 |
| Maximum Depth of Cut (Decimal Inch) | 0.0098 |
| Minimum Groove Width (Decimal Inch) | 0.1252 |
| Maximum Groove Width (Decimal Inch) | 0.1252 |
| Overall Length (Inch) | 14 |
| Toolholder Style | A?KKC |
| Insert Compatibility | KCGP4?L; KCRP4?L |
| Shank Height (Decimal Inch) | 1.5930 |
| Shank Width/Diameter (Inch) | 1.75 |
| Series | Cera-Notch |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Coolant Hole Thread Size | 1/4-18 NPT |
| Insert Holding Method | Top Clamp |
| Center to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Inch) | 1.75 |
| Manufacturers Catalog Number | A28UKKCR4 |
| ISO Number | A28UKKCR4 |
| Toolholder Material | Steel |
| Insert Hand | Left Hand |
| Cutting Width (mm) | 3.180 |
| Minimum Bore Diameter (Decimal Inch) | 2.5000 |
