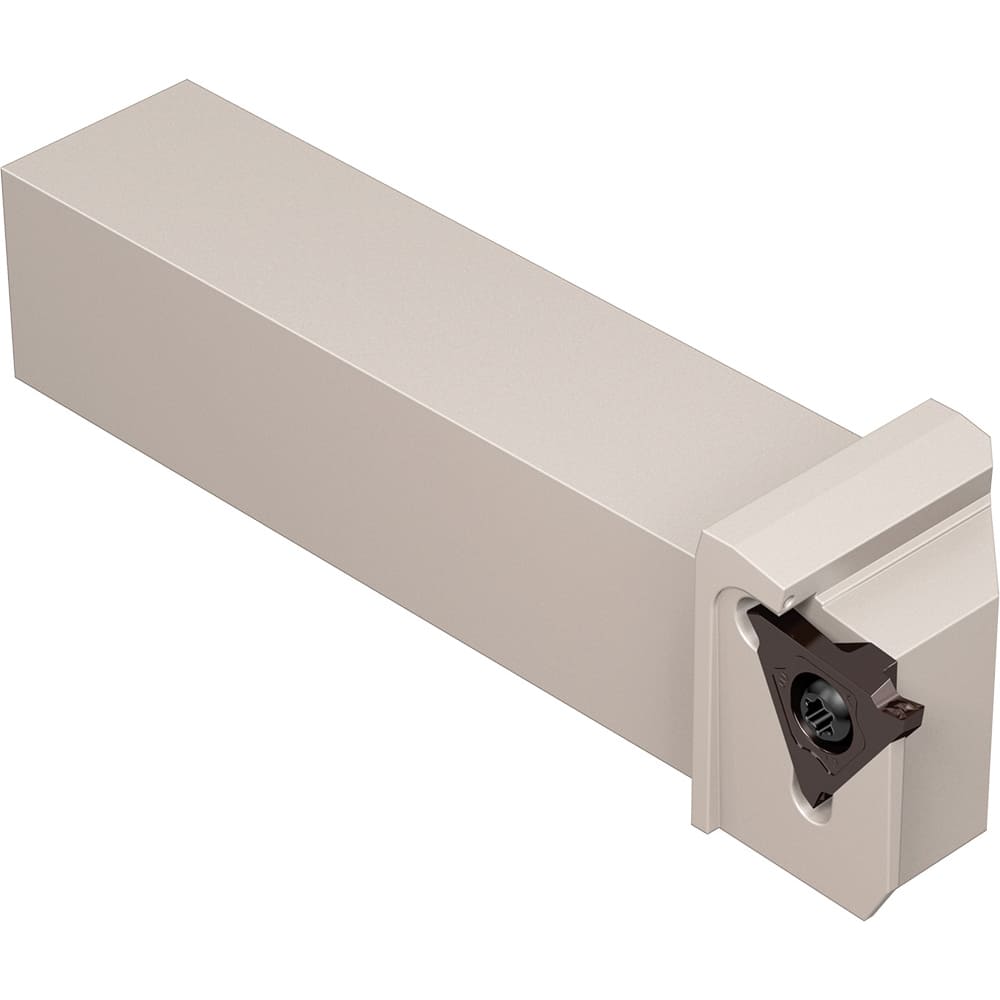

Kyocera - Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Left Hand ; Maximum Depth of Cut (mm): 4.00 ; Minimum Groove Width (mm): 0.33 ; Maximum Groove Width (mm): 3.00
Item #: 17120551
Brand: Kyocera
Model #: 8862949
Product Specifications
Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Left Hand ; Maximum Depth of Cut (mm): 4.00 ; Minimum Groove Width (mm): 0.33 ; Maximum Groove Width (mm): 3.00
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 4.00 |
| Minimum Groove Width (mm) | 0.33 |
| Maximum Groove Width (mm) | 3.00 |
| Overall Length (mm) | 125.0000 |
| Toolholder Style | KGBA |
| Insert Compatibility | GBA43L... |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | GBA JCT |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Coolant Hole Thread Size | 2-G1/8 |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 30.00 |
| Head Length (mm) | 26.50 |
| Manufacturers Catalog Number | KGBAL2525K2215JCT |
| ISO Number | KGBAL2525K22-15JCT |
| Toolholder Material | Steel |
| Insert Hand | Left Hand |
| Cutting Width (mm) | 3.000 |
| OverallLength (mm) | 125.0000 |
