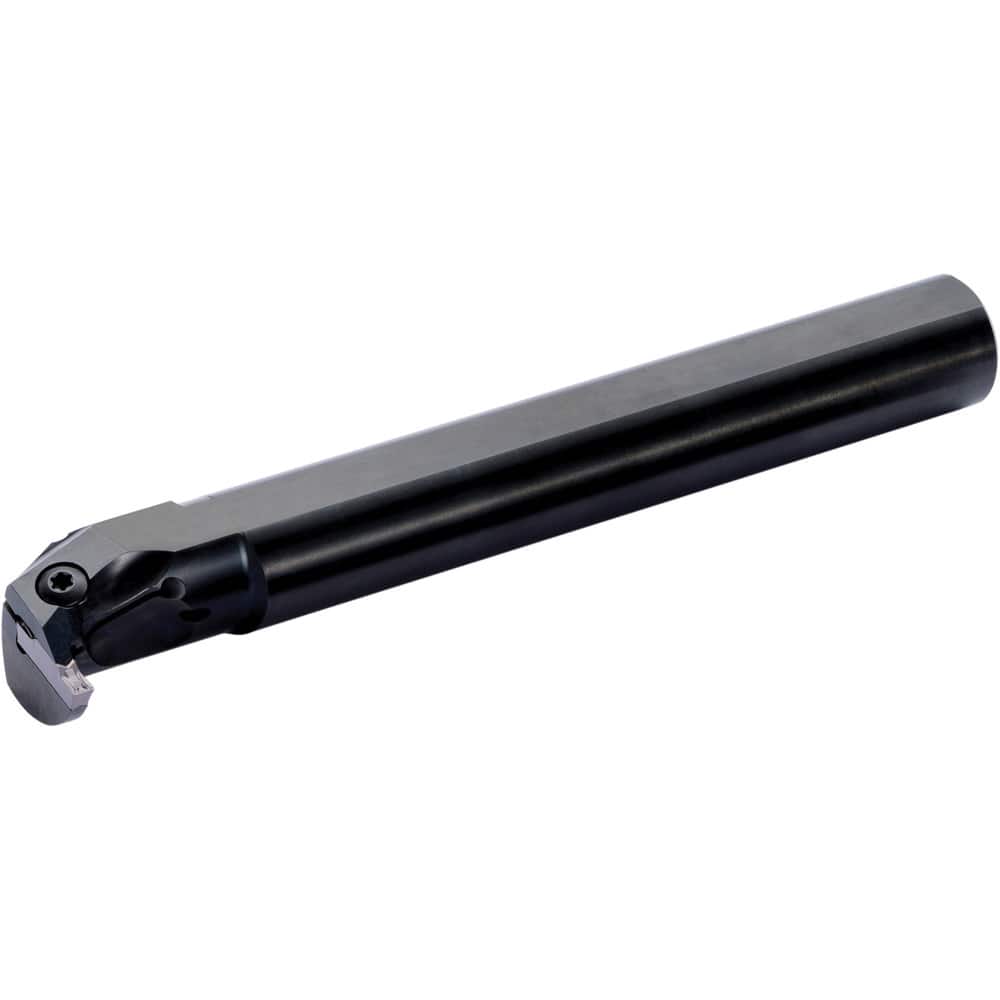

Kyocera - Indexable Grooving Toolholders; Internal or External: Internal ; Toolholder Type: NonFace Grooving ; Hand of Holder: Neutral ; Maximum Depth of Cut: 0.3346 ; Maximum Depth of Cut (Inch): 0.3346 ; Maximum Depth of Cut (Decimal Inch): 0.3346
Item #: 17120635
Brand: Kyocera
Model #: 8845443
Product Specifications
Indexable Grooving Toolholders; Internal or External: Internal ; Toolholder Type: NonFace Grooving ; Hand of Holder: Neutral ; Maximum Depth of Cut: 0.3346 ; Maximum Depth of Cut (Inch): 0.3346 ; Maximum Depth of Cut (Decimal Inch): 0.3346
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Neutral |
| Maximum Depth of Cut | 0.3346 |
| Maximum Depth of Cut (Inch) | 0.3346 |
| Maximum Depth of Cut (Decimal Inch) | 0.3346 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (Inch) | 8 |
| Toolholder Style | KGDI |
| Insert Compatibility | GDM4?GMI; GDM5?GMI; GDM4?CM; GDM5?CM |
| Shank Height (Decimal Inch) | 0.9055 |
| Shank Width/Diameter (Inch) | 1 |
| Series | KGDI |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Coolant Hole Diameter (mm) | 6.00 |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 0.7480 |
| Head Length (Decimal Inch) | 1.5748 |
| Manufacturers Catalog Number | KGDIR16B4 |
| ISO Number | KGDIR16B-4 |
| Toolholder Material | Steel |
| Insert Hand | Neutral |
| Cutting Width (mm) | 4.000 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
