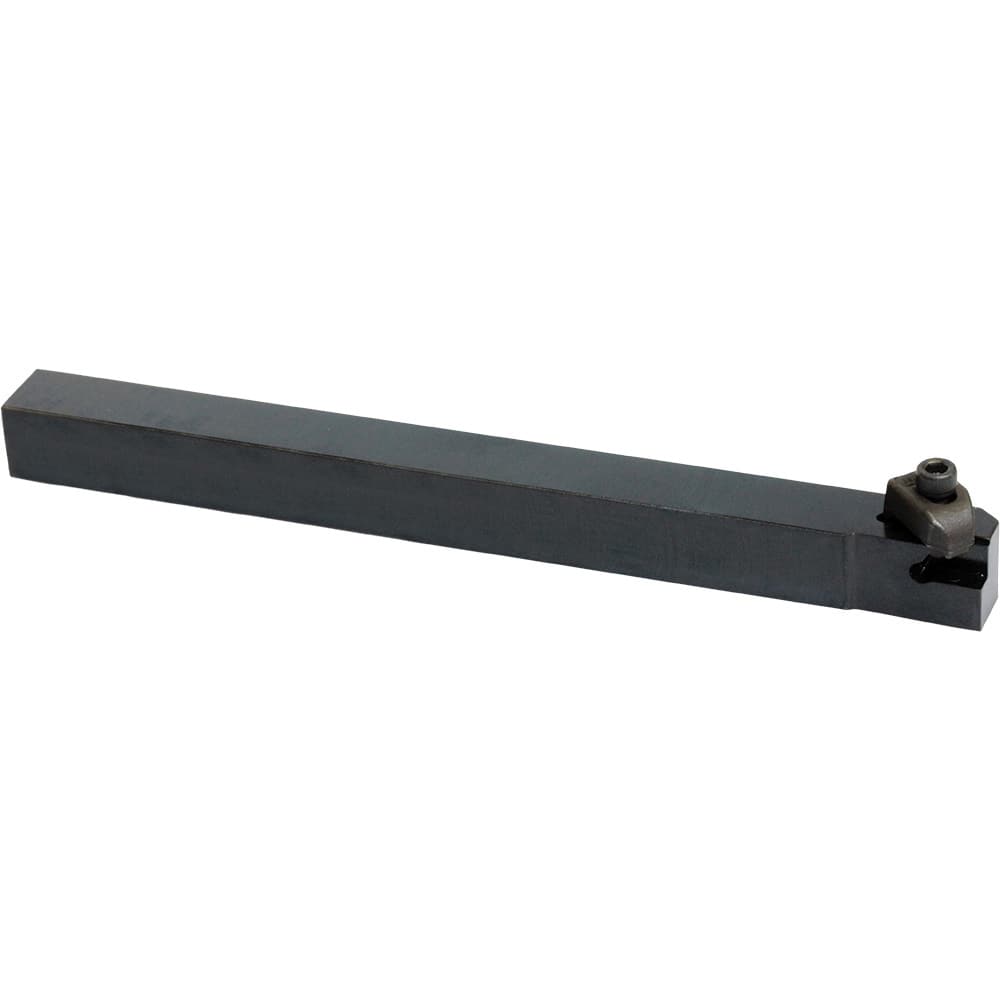

Kyocera - Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Right Hand ; Maximum Depth of Cut (mm): 3.50 ; Minimum Groove Width (mm): 0.79 ; Maximum Groove Width (mm): 3.18
Item #: 17120692
Brand: Kyocera
Model #: 8604054
Product Specifications
Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Right Hand ; Maximum Depth of Cut (mm): 3.50 ; Minimum Groove Width (mm): 0.79 ; Maximum Groove Width (mm): 3.18
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 3.50 |
| Minimum Groove Width (mm) | 0.79 |
| Maximum Groove Width (mm) | 3.18 |
| Overall Length (mm) | 150.0000 |
| Toolholder Style | KKC |
| Insert Compatibility | KCG2?; KCGP2?; KCRP2? |
| Shank Height (mm) | 12.00 |
| Shank Width/Diameter (mm) | 12.00 |
| Series | Cera-Notch |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Top Clamp |
| Back of Bar to Cutting Edge (mm) | 12.25 |
| Head Length (mm) | 19.05 |
| Manufacturers Catalog Number | KKCR1212M2150F |
| ISO Number | KKCR1212M2150F |
| Toolholder Material | Steel |
| Insert Hand | Right Hand |
| Cutting Width (mm) | 3.180 |
| OverallLength (mm) | 150.0000 |
