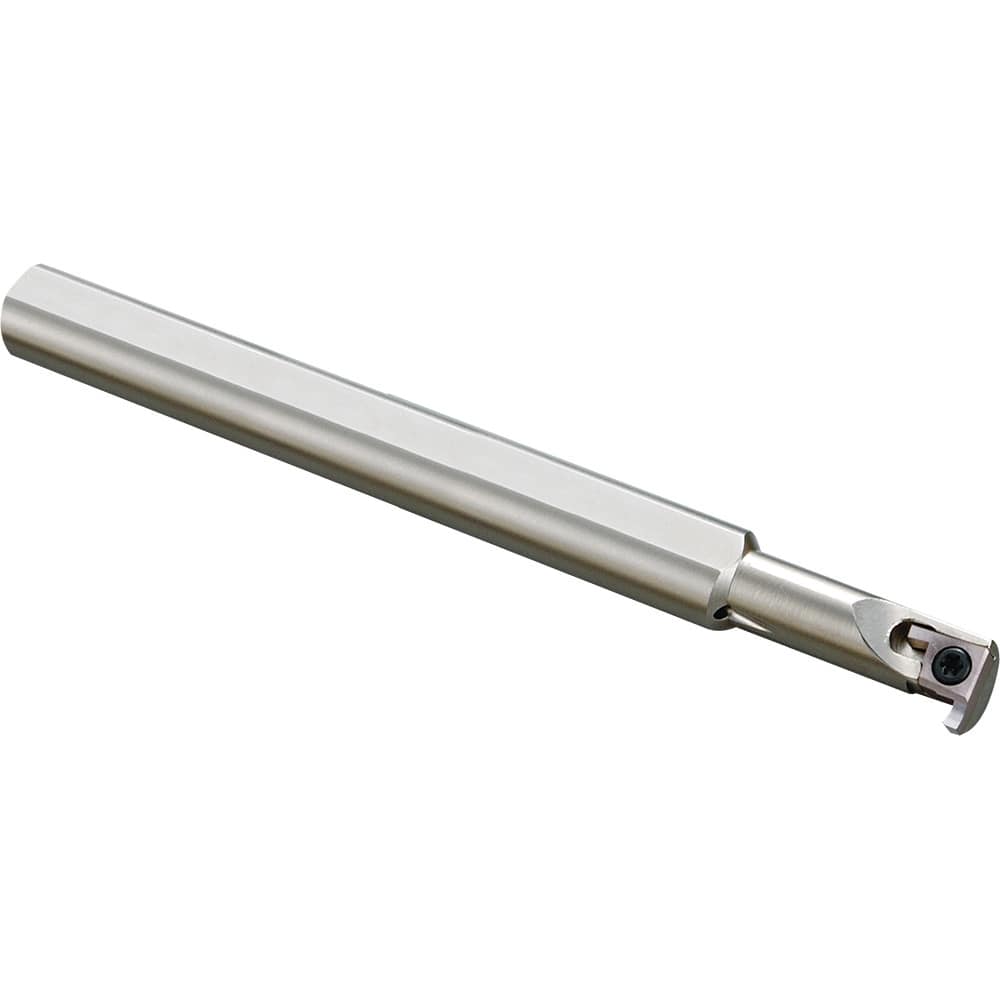

Kyocera - Indexable Grooving Toolholders; Internal or External: Internal ; Toolholder Type: NonFace Grooving ; Hand of Holder: Left Hand ; Maximum Depth of Cut: 0.0866 ; Maximum Depth of Cut (Inch): 0.0866 ; Maximum Depth of Cut (Decimal Inch): 0.0866
Item #: 17120700
Brand: Kyocera
Model #: 8822683
Product Specifications
Indexable Grooving Toolholders; Internal or External: Internal ; Toolholder Type: NonFace Grooving ; Hand of Holder: Left Hand ; Maximum Depth of Cut: 0.0866 ; Maximum Depth of Cut (Inch): 0.0866 ; Maximum Depth of Cut (Decimal Inch): 0.0866
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut | 0.0866 |
| Maximum Depth of Cut (Inch) | 0.0866 |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Minimum Groove Width (Decimal Inch) | 0.0394 |
| Maximum Groove Width (Decimal Inch) | 0.0394 |
| Overall Length (Decimal Inch) | 4.92000 |
| Toolholder Style | SIGE |
| Insert Compatibility | GEL?B; GEL?BR |
| Shank Height (Decimal Inch) | 0.3543 |
| Shank Width/Diameter (mm) | 10.00 |
| Series | SIGE |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Coolant Hole Diameter (mm) | 4.00 |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 0.2320 |
| Head Length (Decimal Inch) | 0.9843 |
| Manufacturers Catalog Number | SIGEL06EH |
| ISO Number | SIGEL06EH |
| Toolholder Material | Steel |
| Insert Hand | Left Hand |
| Cutting Width (mm) | 1.000 |
| Minimum Bore Diameter (Decimal Inch) | 0.3937 |
