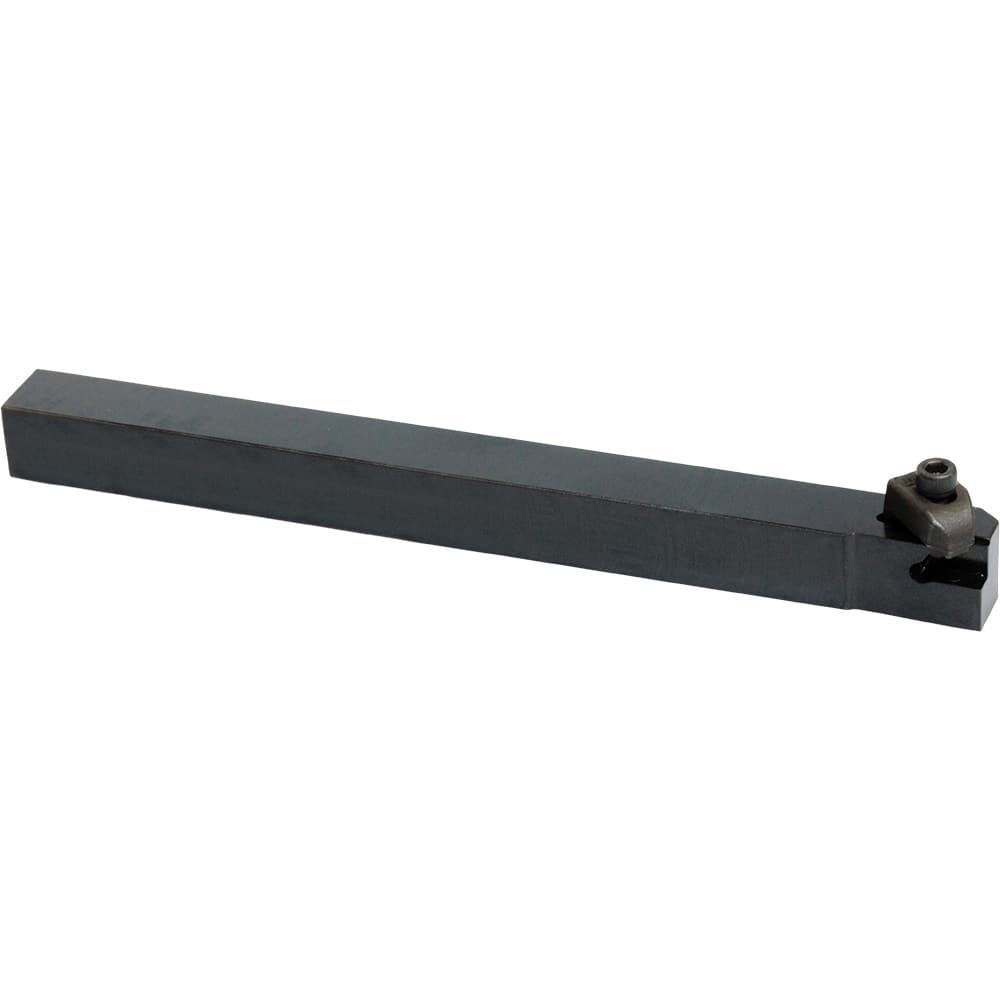

Kyocera - Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Left Hand ; Maximum Depth of Cut: 0.1380 ; Maximum Depth of Cut (Inch): 0.1380 ; Maximum Depth of Cut (Decimal Inch): 0.1380
Item #: 17120742
Brand: Kyocera
Model #: 8604038
Product Specifications
Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Left Hand ; Maximum Depth of Cut: 0.1380 ; Maximum Depth of Cut (Inch): 0.1380 ; Maximum Depth of Cut (Decimal Inch): 0.1380
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut | 0.1380 |
| Maximum Depth of Cut (Inch) | 0.1380 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Maximum Groove Width (Inch) | 0.125 |
| Overall Length (Inch) | 6 |
| Toolholder Style | KKC |
| Insert Compatibility | KCG2?; KCGP2?; KCRP2? |
| Shank Height (Inch) | 0.625 |
| Shank Width/Diameter (Inch) | 0.625 |
| Series | Cera-Notch |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Top Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6350 |
| Head Length (Inch) | 0.75 |
| Manufacturers Catalog Number | KKCL102DF |
| ISO Number | KKCL102DF |
| Toolholder Material | Steel |
| Insert Hand | Left Hand |
| Cutting Width (mm) | 3.180 |
