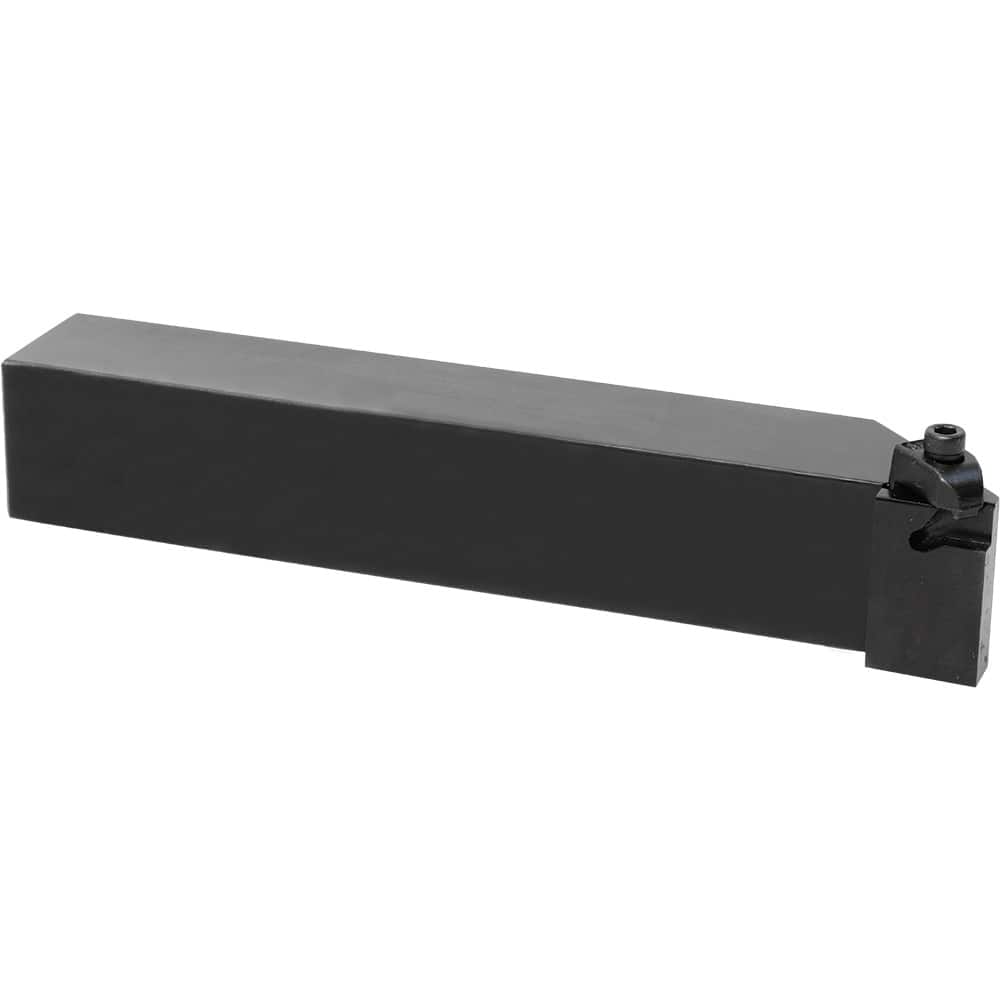

Kyocera - Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Left Hand ; Maximum Depth of Cut: 0.2940 ; Maximum Depth of Cut (Inch): 0.2940 ; Maximum Depth of Cut (Decimal Inch): 0.2940
Item #: 17120759
Brand: Kyocera
Model #: 8604046
Product Specifications
Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Left Hand ; Maximum Depth of Cut: 0.2940 ; Maximum Depth of Cut (Inch): 0.2940 ; Maximum Depth of Cut (Decimal Inch): 0.2940
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut | 0.2940 |
| Maximum Depth of Cut (Inch) | 0.2940 |
| Maximum Depth of Cut (Decimal Inch) | 0.2940 |
| Minimum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (Inch) | 0.25 |
| Overall Length (Inch) | 6 |
| Toolholder Style | KKC |
| Insert Compatibility | KCGP4?; KCRP4? |
| Shank Height (Inch) | 1 |
| Shank Width/Diameter (Inch) | 1 |
| Series | Cera-Notch |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Top Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.3800 |
| Manufacturers Catalog Number | KKCL164D |
| ISO Number | KKCL164D |
| Toolholder Material | Steel |
| Insert Hand | Left Hand |
| Cutting Width (mm) | 6.350 |
