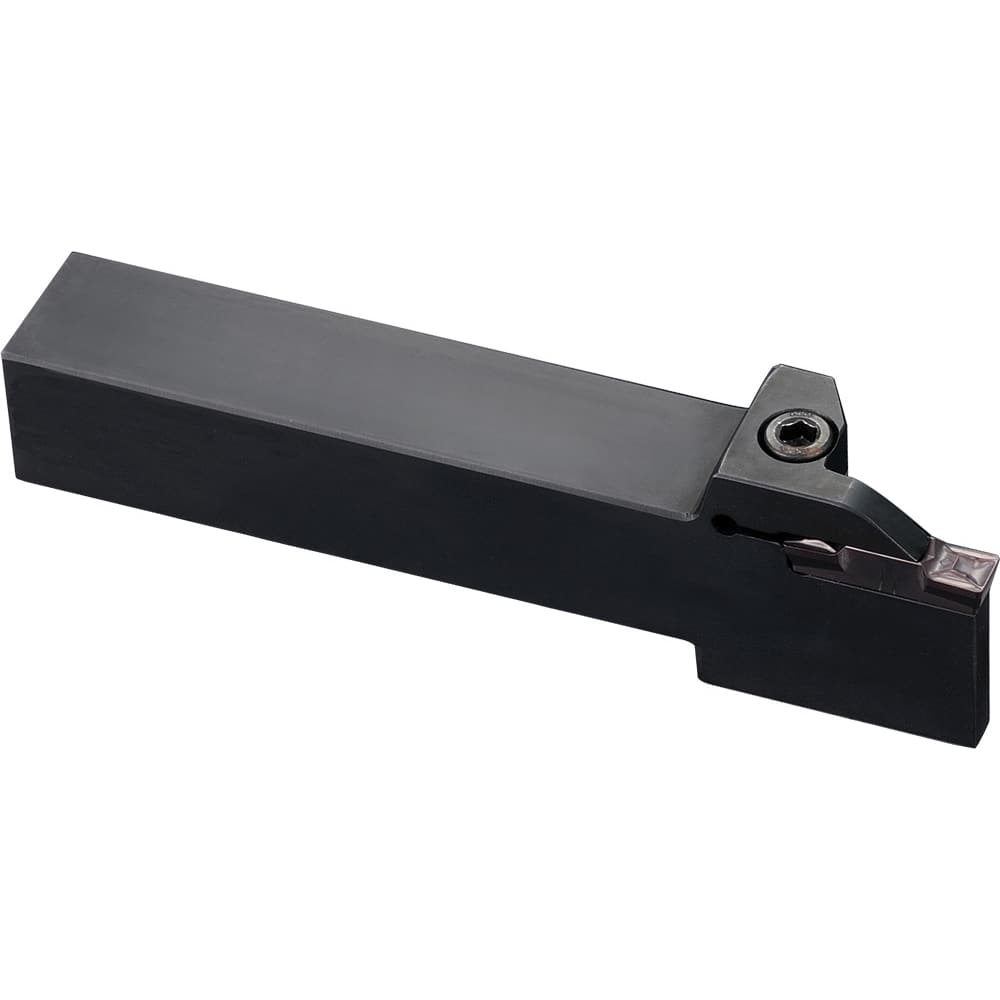

Kyocera - Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: Face Grooving ; Hand of Holder: Neutral ; Maximum Depth of Cut (mm): 15.00 ; Minimum Groove Width (mm): 4.00 ; Maximum Groove Width (mm): 4.00
Item #: 17120767
Brand: Kyocera
Model #: 8839043
Product Specifications
Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: Face Grooving ; Hand of Holder: Neutral ; Maximum Depth of Cut (mm): 15.00 ; Minimum Groove Width (mm): 4.00 ; Maximum Groove Width (mm): 4.00
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Neutral |
| Maximum Depth of Cut (mm) | 15.00 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (mm) | 4.00 |
| Overall Length (mm) | 150.0000 |
| Toolholder Style | KGDF |
| Insert Compatibility | GDFM4020N?; GDFMS4020N |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | KGD |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Top Clamp |
| Back of Bar to Cutting Edge (mm) | 25.30 |
| Head Length (mm) | 30.50 |
| Manufacturers Catalog Number | KGDFL2525M704BZ |
| ISO Number | KGDFL2525M70-4B-Z |
| Toolholder Material | Steel |
| Insert Hand | Neutral |
| Cutting Width (mm) | 4.000 |
| OverallLength (mm) | 150.0000 |
