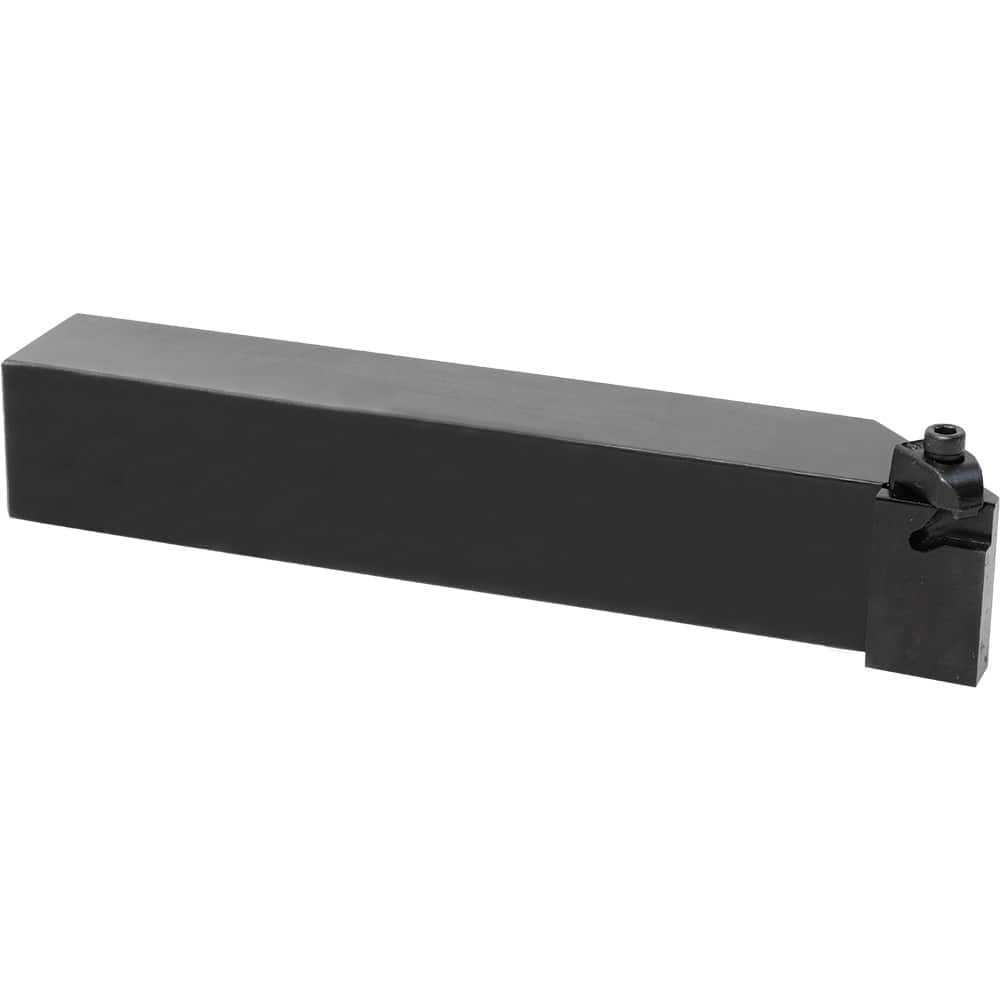

Indexable Grooving Toolholder: KKCL203D, External Left Hand, 0.1890″ Max Groove Width 0.2100″ Max Depth, 1-1/4″ Shank Width, No
Item #: 17120775
Brand: Kyocera
Model #: THT89084
Product Specifications
| Internal or External | External |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2100 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Toolholder Style | KKC |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Insert Holding Method | Top Clamp |
| Insert Compatibility | KCG3?; KCGDP?; KCGP3?; KCRP3? |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Height (Inch) | 1-1/4 |
| Series | Cera-Notch |
| Overall Length (Inch) | 6 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (Inch) | 1-1/4 |
| Manufacturers Catalog Number | KKCL203D |
| Toolholder Material | Steel |
| Insert Hand | Left Hand |
| Coolant Through | No |
