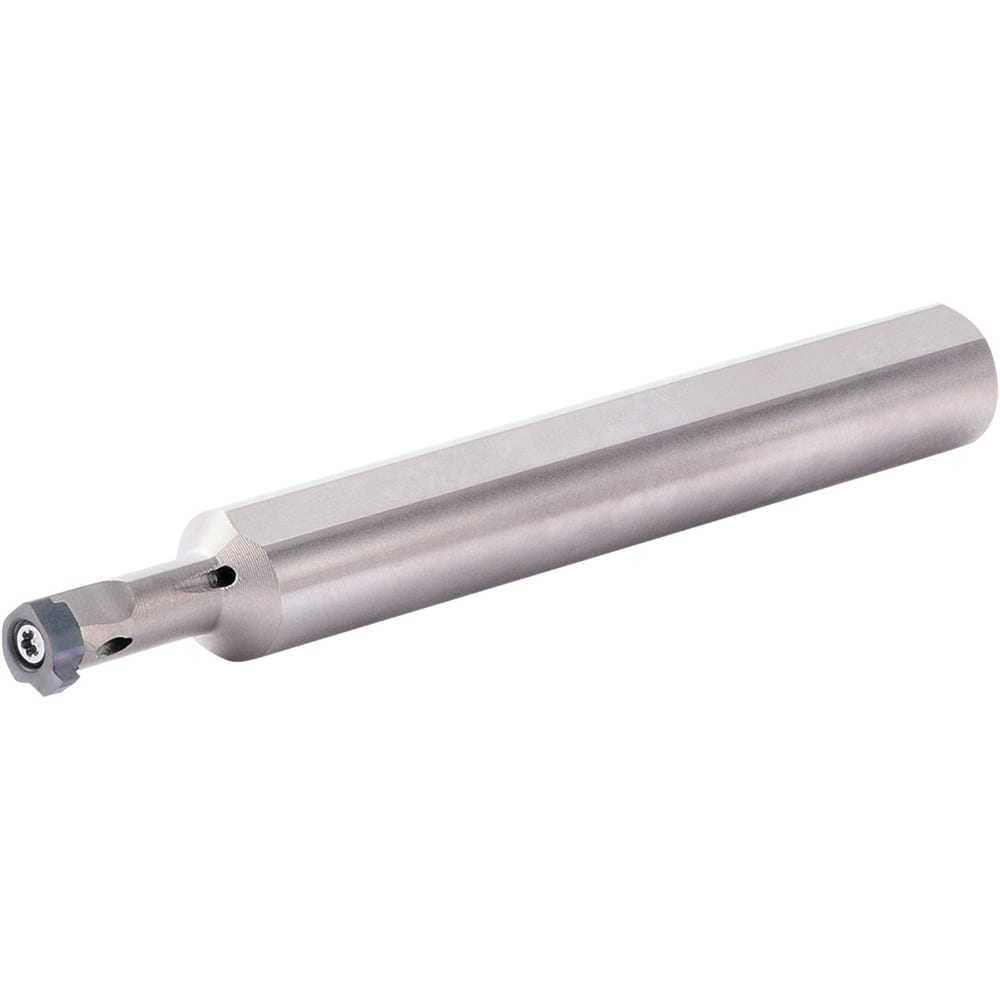

Kyocera - Indexable Grooving Toolholders; Internal or External: Internal ; Toolholder Type: NonFace Grooving ; Hand of Holder: Right Hand ; Maximum Depth of Cut (mm): 1.50 ; Minimum Groove Width (mm): 1.00 ; Maximum Groove Width (mm): 2.00
Item #: 17120783
Brand: Kyocera
Model #: 8863937
Product Specifications
Indexable Grooving Toolholders; Internal or External: Internal ; Toolholder Type: NonFace Grooving ; Hand of Holder: Right Hand ; Maximum Depth of Cut (mm): 1.50 ; Minimum Groove Width (mm): 1.00 ; Maximum Groove Width (mm): 2.00
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 1.50 |
| Minimum Groove Width (mm) | 1.00 |
| Maximum Groove Width (mm) | 2.00 |
| Overall Length (mm) | 100.0000 |
| Toolholder Style | SIGC |
| Insert Compatibility | GC08R? |
| Shank Height (mm) | 11.00 |
| Shank Width/Diameter (mm) | 12.00 |
| Series | SIGC |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 4.10 |
| Head Length (mm) | 18.00 |
| Manufacturers Catalog Number | SIGCR0812EH |
| ISO Number | SIGCR0812-EH |
| Toolholder Material | Steel |
| Insert Hand | Right Hand |
| Cutting Width (mm) | 2.000 |
| OverallLength (mm) | 100.0000 |
