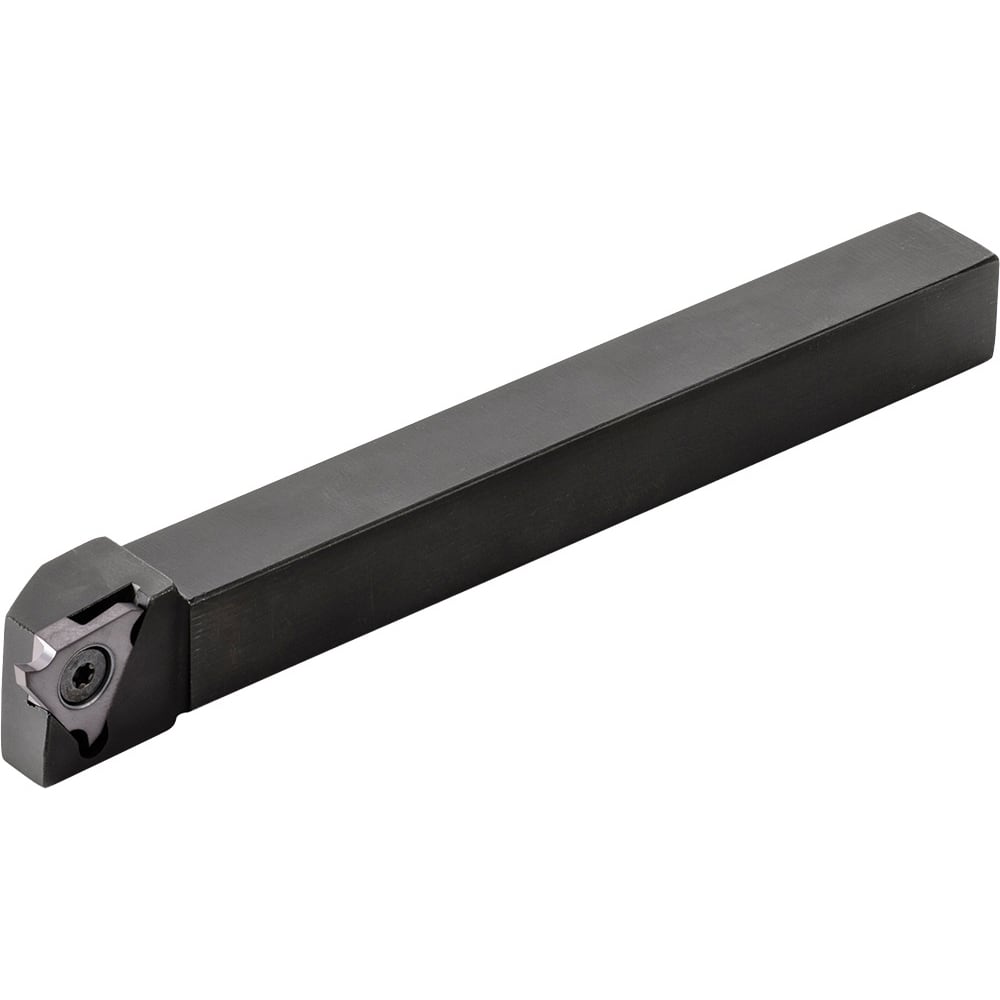

Kyocera - Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Right Hand ; Maximum Depth of Cut (mm): 3.00 ; Minimum Groove Width (mm): 0.25 ; Maximum Groove Width (mm): 3.00
Item #: 17120890
Brand: Kyocera
Model #: 8847260
Product Specifications
Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Right Hand ; Maximum Depth of Cut (mm): 3.00 ; Minimum Groove Width (mm): 0.25 ; Maximum Groove Width (mm): 3.00
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Minimum Groove Width (mm) | 0.25 |
| Maximum Groove Width (mm) | 3.00 |
| Overall Length (mm) | 120.0000 |
| Toolholder Style | KGBF-F |
| Insert Compatibility | GBF32R... |
| Shank Height (mm) | 16.00 |
| Shank Width/Diameter (mm) | 16.00 |
| Series | GBF |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Head Length (mm) | 18.50 |
| Manufacturers Catalog Number | KGBFR1616JX16F |
| ISO Number | KGBFR1616JX-16F |
| Toolholder Material | Steel |
| Insert Hand | Right Hand |
| Cutting Width (mm) | 3.000 |
| OverallLength (mm) | 120.0000 |
