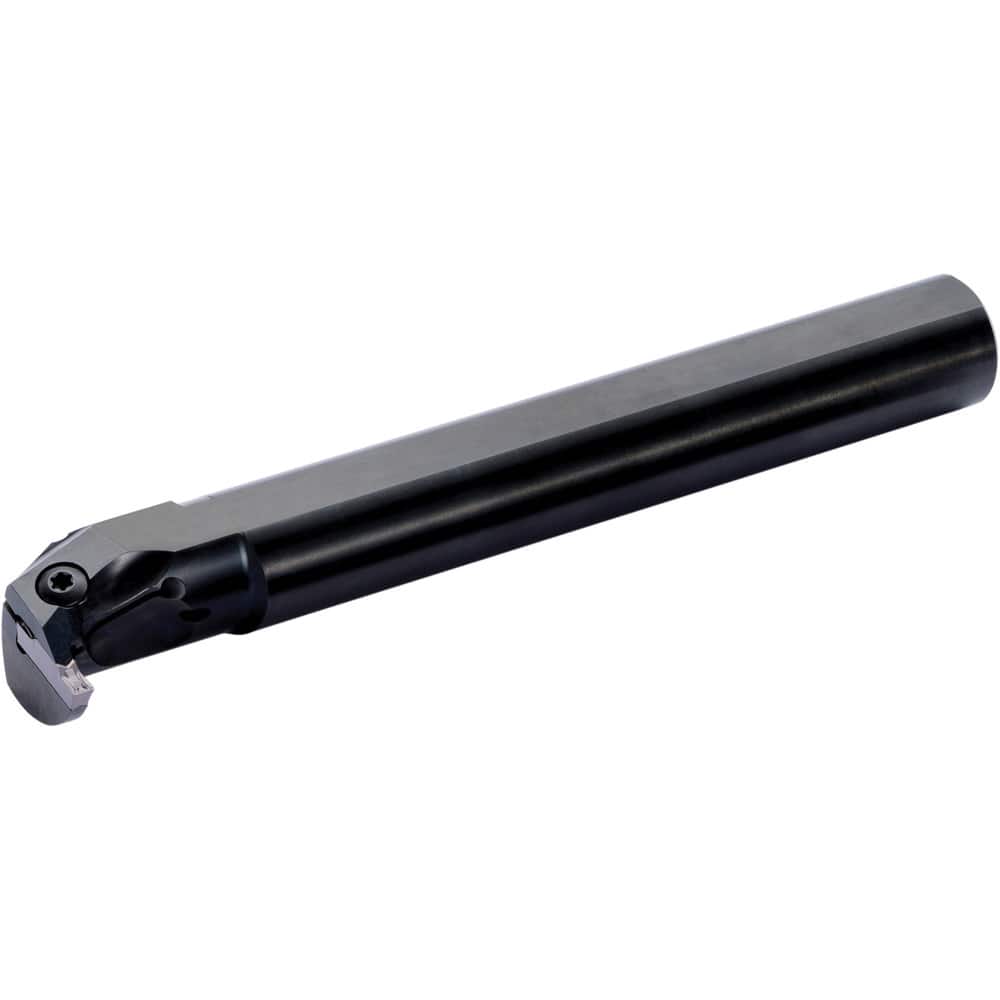

Kyocera - Indexable Grooving Toolholders; Internal or External: Internal ; Toolholder Type: NonFace Grooving ; Hand of Holder: Neutral ; Maximum Depth of Cut (mm): 8.00 ; Minimum Groove Width (mm): 5.00 ; Maximum Groove Width (mm): 5.00
Item #: 17120924
Brand: Kyocera
Model #: 8845493
Product Specifications
Indexable Grooving Toolholders; Internal or External: Internal ; Toolholder Type: NonFace Grooving ; Hand of Holder: Neutral ; Maximum Depth of Cut (mm): 8.00 ; Minimum Groove Width (mm): 5.00 ; Maximum Groove Width (mm): 5.00
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Neutral |
| Maximum Depth of Cut (mm) | 8.00 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (mm) | 200.0000 |
| Toolholder Style | KGDI |
| Insert Compatibility | GDM3?GMI; GDM3?CM |
| Shank Height (mm) | 23.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | KGDI |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Coolant Hole Diameter (mm) | 6.00 |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 19.00 |
| Head Length (mm) | 40.00 |
| Manufacturers Catalog Number | KGDIR3225B3 |
| ISO Number | KGDIR3225B-3 |
| Toolholder Material | Steel |
| Insert Hand | Neutral |
| Cutting Width (mm) | 5.000 |
| OverallLength (mm) | 200.0000 |
