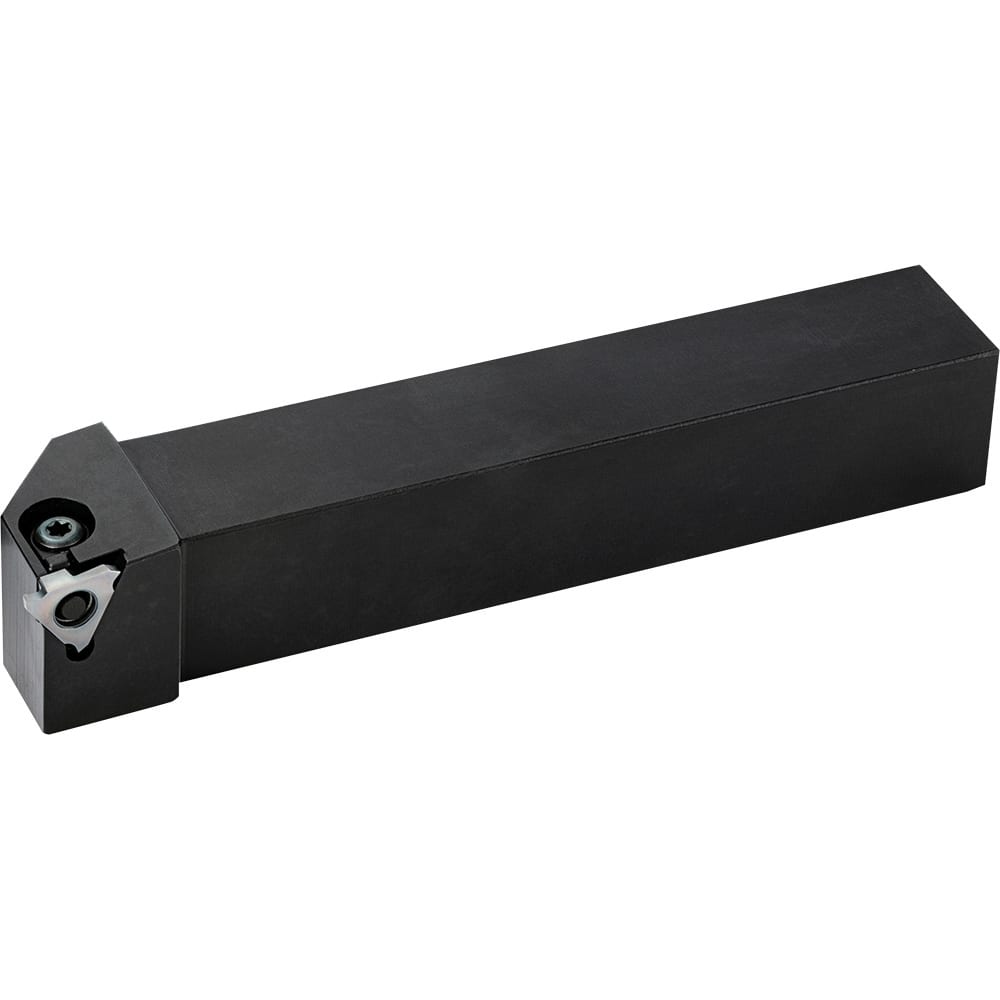

Kyocera - Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Right Hand ; Maximum Depth of Cut (mm): 5.50 ; Minimum Groove Width (mm): 2.39 ; Maximum Groove Width (mm): 3.30
Item #: 17121013
Brand: Kyocera
Model #: 8845034
Product Specifications
Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Right Hand ; Maximum Depth of Cut (mm): 5.50 ; Minimum Groove Width (mm): 2.39 ; Maximum Groove Width (mm): 3.30
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 5.50 |
| Minimum Groove Width (mm) | 2.39 |
| Maximum Groove Width (mm) | 3.30 |
| Overall Length (mm) | 150.0000 |
| Toolholder Style | KGBA |
| Insert Compatibility | GBA43R... |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | GBA |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Lever; Lock Pin |
| Back of Bar to Cutting Edge (mm) | 30.00 |
| Head Length (mm) | 25.50 |
| Manufacturers Catalog Number | KGBAR2525M2225T5 |
| ISO Number | KGBAR2525M22-25T5 |
| Toolholder Material | Steel |
| Insert Hand | Right Hand |
| Cutting Width (mm) | 3.300 |
| OverallLength (mm) | 150.0000 |
