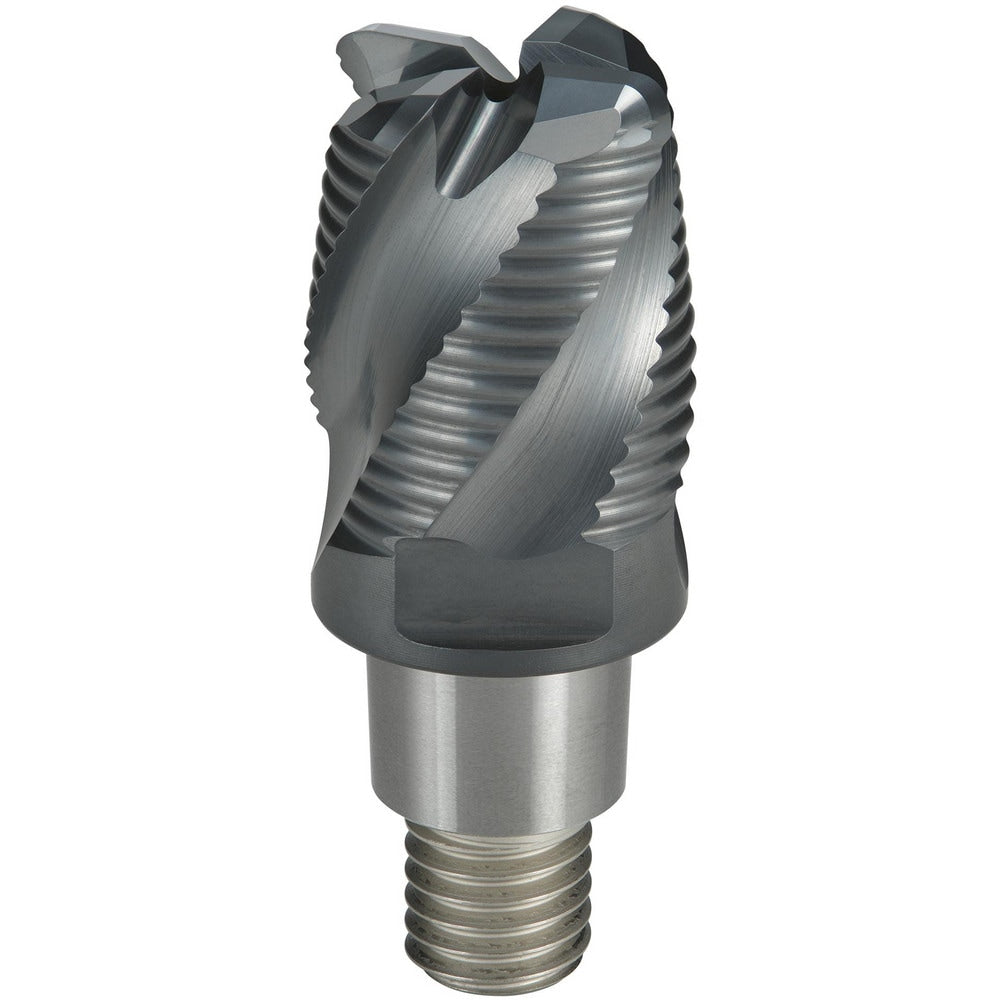

Roughing End Mill Heads; Mill Diameter (mm): 10.00; Pitch: Variable; Connection Type: Tapered, Threaded; Length of Cut (mm): 10.5000; End Type: Corner Radius; Material: Solid Carbide; Overall Length (mm): 16.0000
Item #: 76171164
Brand: Mitsubishi
Model #: 10619902
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Pitch | Variable |
| Connection Type | Tapered; Threaded |
| Length of Cut (mm) | 10.5000 |
| End Type | Corner Radius |
| Material | Solid Carbide |
| Overall Length (mm) | 16.0000 |
| Centercutting | No |
| Corner Radius (mm) | 1.00 |
| Coolant Induced | Yes |
| Material Grade | Solid Carbide |
| Cutting Direction | Multi-Directional |
| Flute Direction | Right Hand |
| Flute Type | Helical Flute |
| Helix Angle | 36.00 |
| Helix Style | Variable |
| Series/List | iMX |
| Chipbreaker | Yes |
| Number Of Flutes | 4 |
| Finish Coating | AlTiN |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
