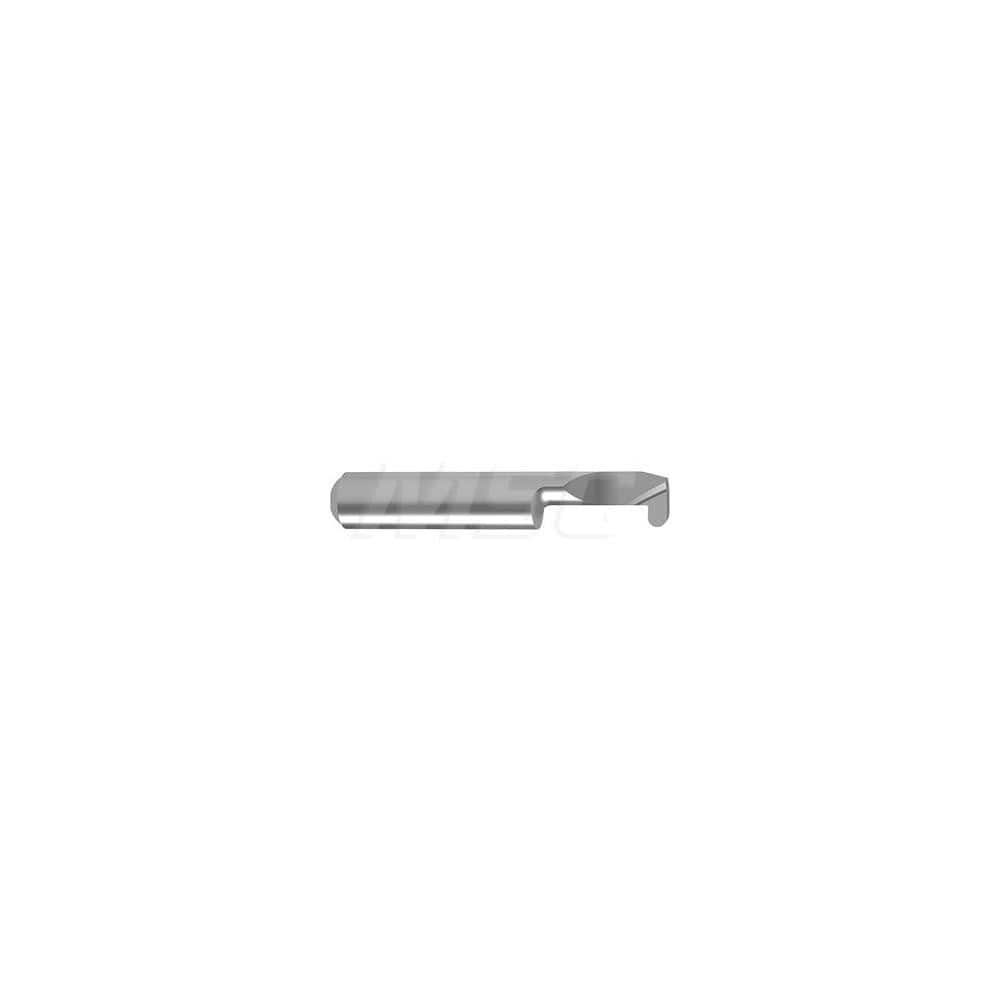

Grooving Tool: LH Cut, Full Radius Solid Carbide
Item #: 17196924
Brand: Guhring
Model #: 9272310081500
Product Specifications
| Grooving Tool Type | Full Radius |
| Cutting Direction | Left Hand |
| Minimum Hole Diameter (mm) | 8.00 |
| Groove Width (mm) | 2.00 |
| Groove Depth (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 8.00 |
| Overall Length (mm) | 72.00 |
| Finish | Uncoated |
| Radius (mm) | 1.00 |
| Material | Solid Carbide |
| Maximum Hole Depth (mm) | 47.00 |
| Shank Length (mm) | 22.37 |
| Bar Neck Diameter (Decimal Inch) | 0.0550 |
| Projection (mm) | 49.50 |
| Manufacturer's Part Number | GE108.0200.100.47.80.L.B1 |
