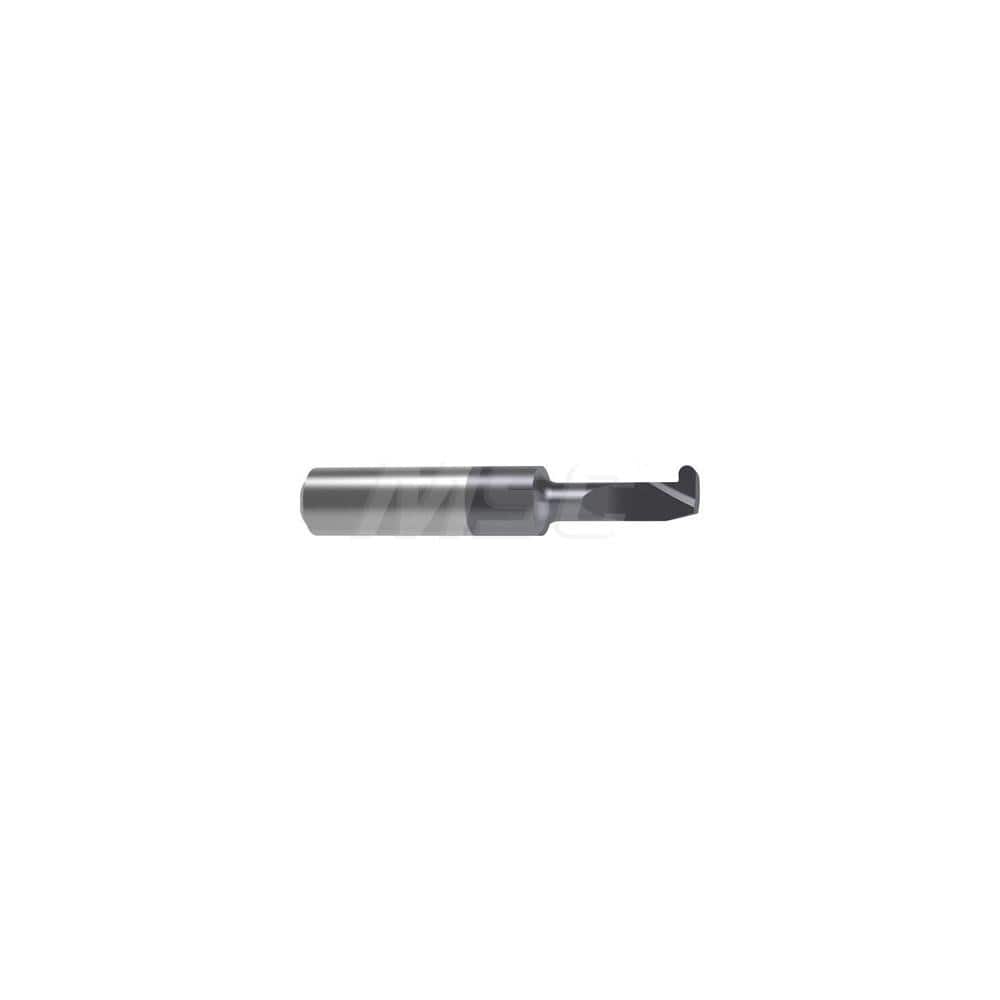

Grooving Tool: RH Cut, Full Radius Solid Carbide
Item #: 17198524
Brand: Guhring
Model #: 9271280082500
Product Specifications
| Grooving Tool Type | Full Radius |
| Cutting Direction | Right Hand |
| Minimum Hole Diameter (mm) | 7.00 |
| Groove Width (mm) | 2.50 |
| Groove Depth (Decimal Inch) | 0.0984 |
| Shank Diameter (mm) | 8.00 |
| Overall Length (mm) | 72.00 |
| Finish | nano-A |
| Radius (mm) | 1.25 |
| Material | Solid Carbide |
| Maximum Hole Depth (mm) | 47.00 |
| Shank Length (mm) | 22.21 |
| Bar Neck Diameter (Decimal Inch) | 0.1140 |
| Projection (mm) | 49.50 |
| Manufacturer's Part Number | GE108.0250.125.47.70.R.U1 |
