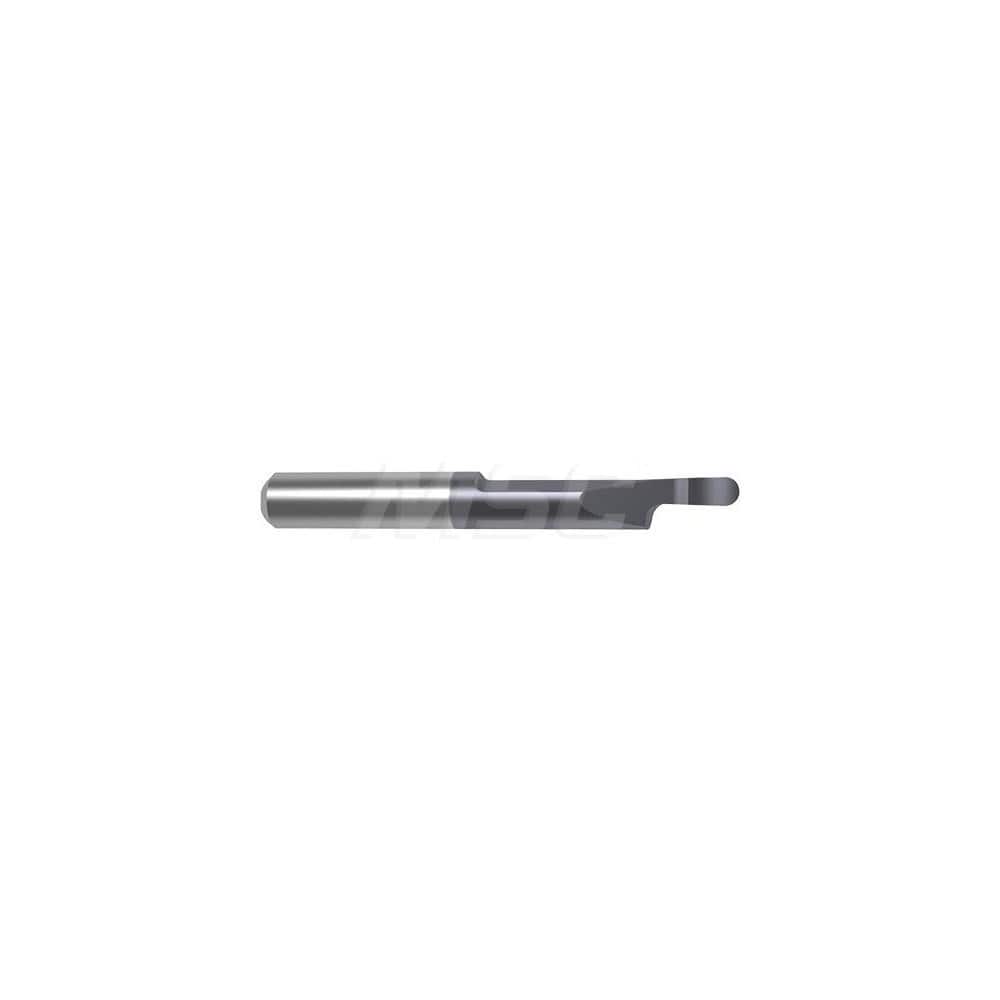

Grooving Tool: LH Cut, Face & Full Radius Solid Carbide
Item #: 17198714
Brand: Guhring
Model #: 9272370080040
Product Specifications
| Grooving Tool Type | Full Radius; Face |
| Cutting Direction | Left Hand |
| Minimum Hole Diameter (mm) | 8.00 |
| Groove Width (mm) | 3.00 |
| Groove Depth (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Overall Length (mm) | 47.00 |
| Finish | nano-A |
| Radius (mm) | 1.50 |
| Material | Solid Carbide |
| Maximum Hole Depth (mm) | 8.00 |
| Shank Length (mm) | 22.19 |
| Projection (mm) | 22.00 |
| Manufacturer's Part Number | GA108.0300.125.22.80.L.U1 |
