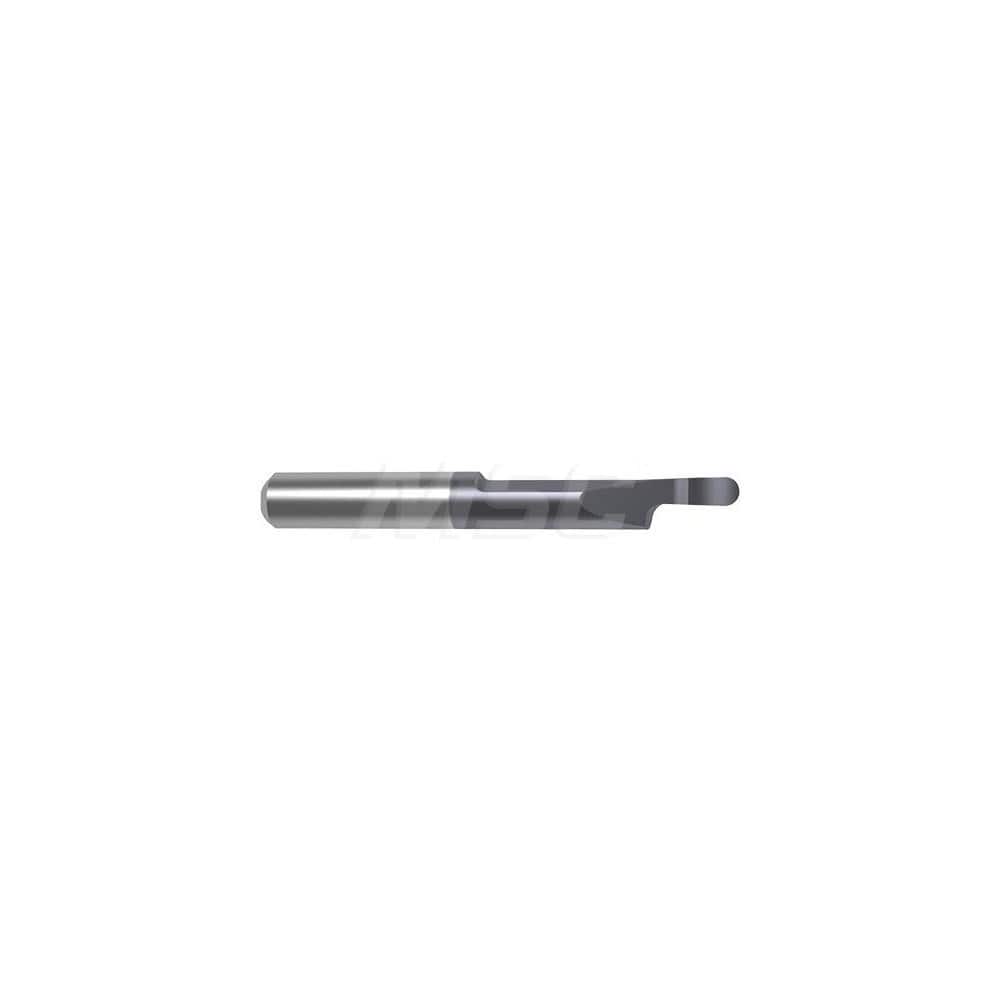

Grooving Tool: RH Cut, Face & Full Radius Solid Carbide
Item #: 17199878
Brand: Guhring
Model #: 9272380080010
Product Specifications
| Grooving Tool Type | Full Radius; Face |
| Cutting Direction | Right Hand |
| Minimum Hole Diameter (mm) | 8.00 |
| Groove Width (mm) | 2.50 |
| Groove Depth (Decimal Inch) | 0.1969 |
| Shank Diameter (mm) | 8.00 |
| Overall Length (mm) | 42.00 |
| Finish | Uncoated |
| Radius (mm) | 1.25 |
| Material | Solid Carbide |
| Maximum Hole Depth (mm) | 5.00 |
| Shank Length (mm) | 22.76 |
| Projection (mm) | 17.00 |
| Manufacturer's Part Number | GA108.0250.125.17.80.R.B1 |
