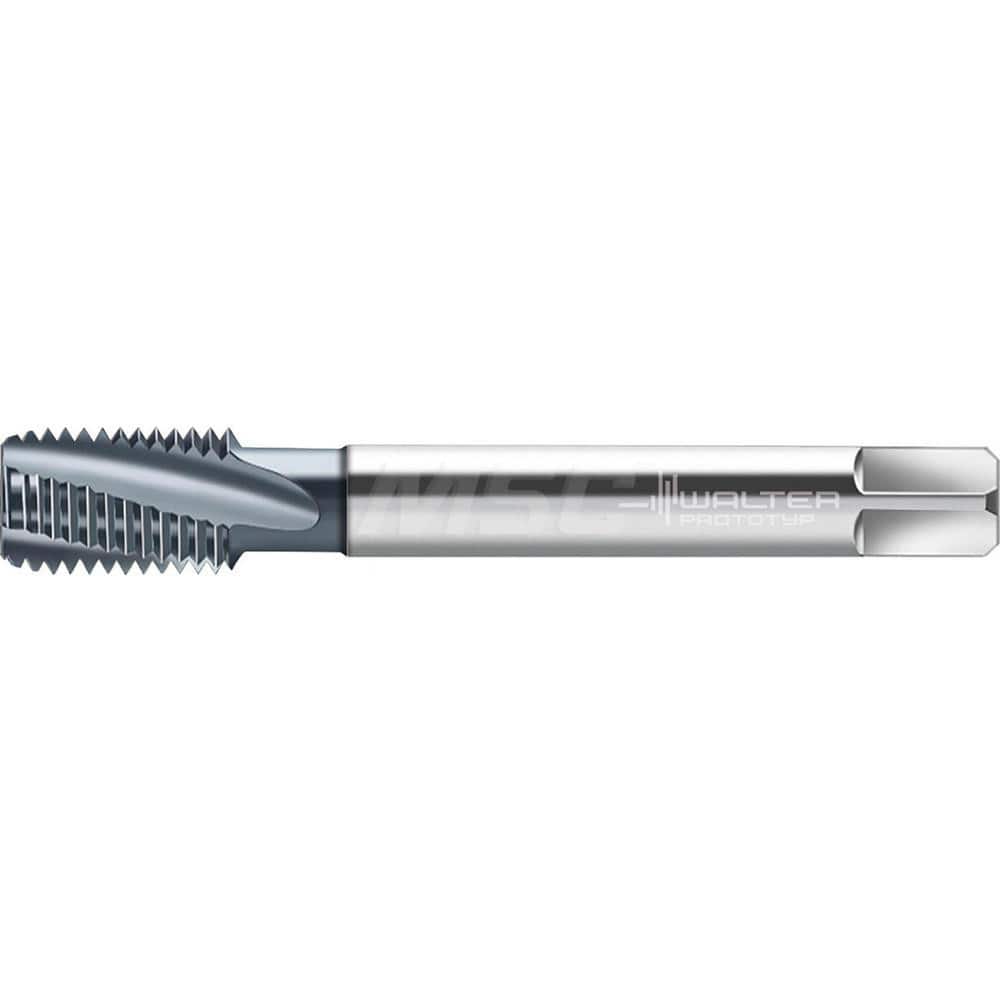

Spiral Flute Tap: 1/2-13, UNC, 4 Flute, Semi-Bottoming, 2B Class of Fit, High Speed Steel-E-PM, TiCN Finish Right Hand Flute, Right Hand Thread, Series 224
Item #: 17265885
Brand: Walter-Prototyp
Model #: 7513069
Product Specifications
| Material | High Speed Steel-E-PM |
| Coating/Finish | TiCN |
| Thread Size (Inch - 0 Decimals) | 1/2-13 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 23.00 |
| Overall Length (mm) | 110.00 |
| Chamfer | Semi-Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 25 |
| Shank Diameter (mm) | 6.48 |
| Tapping Depth (mm) | 30.00 |
| Series | 224 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Class Of Fit | 2B |
