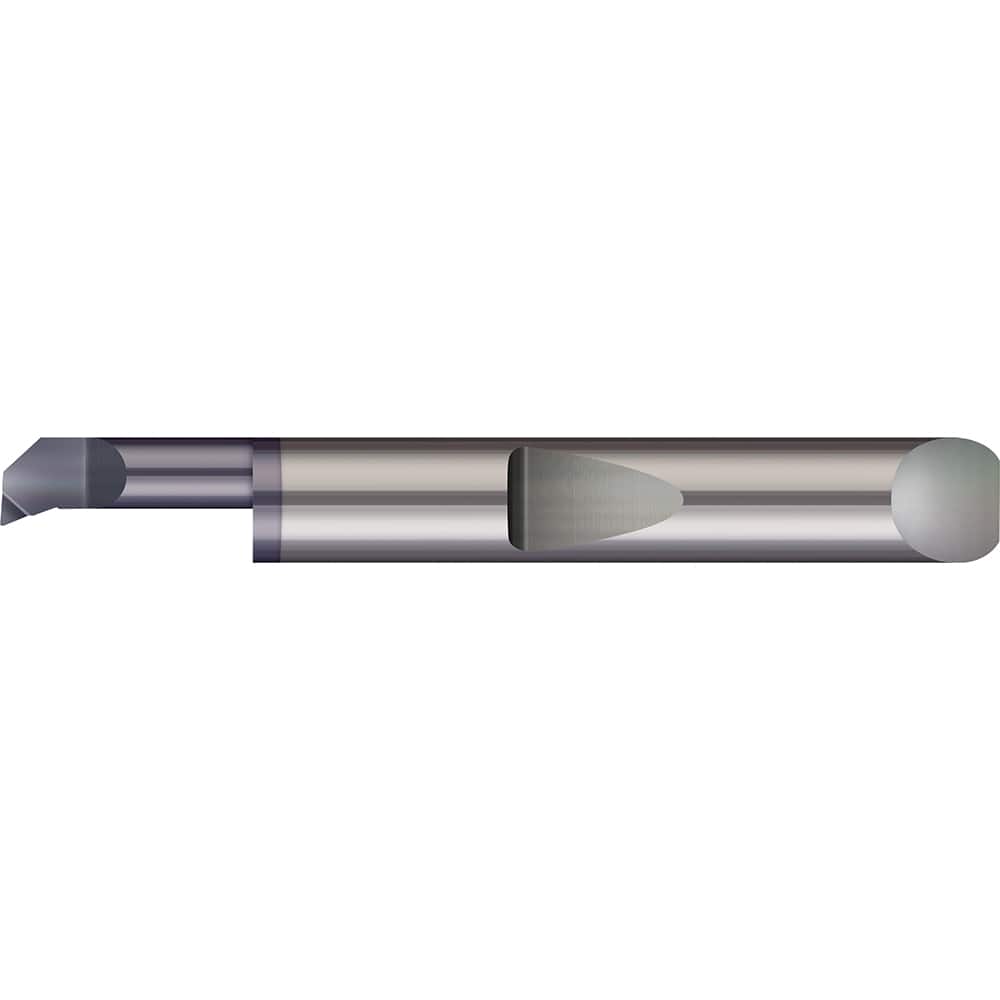

Boring Bar: 0.32″ Min Bore, 1-1/4″ Max Depth, Right Hand Cut, Solid Carbide 3/8″ Shank Dia, 2-1/2″ OAL, 0.006″ Corner Radius
Item #: 17622986
Brand: Micro 100
Model #: QBT6-3001250X
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.3200 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 1.2500 |
| Shank Diameter (Decimal Inch) | 3/8 |
| Overall Length (Inch) | 2-1/2 |
| Finish Coating | AlTiN |
| Corner Radius (Decimal Inch) | 0.0060 |
| Manufacturers Catalog Number | QBT6-3001250X |
| Maximum Bore Depth (Inch) | 1-1/4 |
| Offset (Decimal Inch) | 0.1120 |
| Overall Length (Decimal Inch) | 2.5000 |
| Projection (Decimal Inch - 4 Decimals) | 0.0500 |
