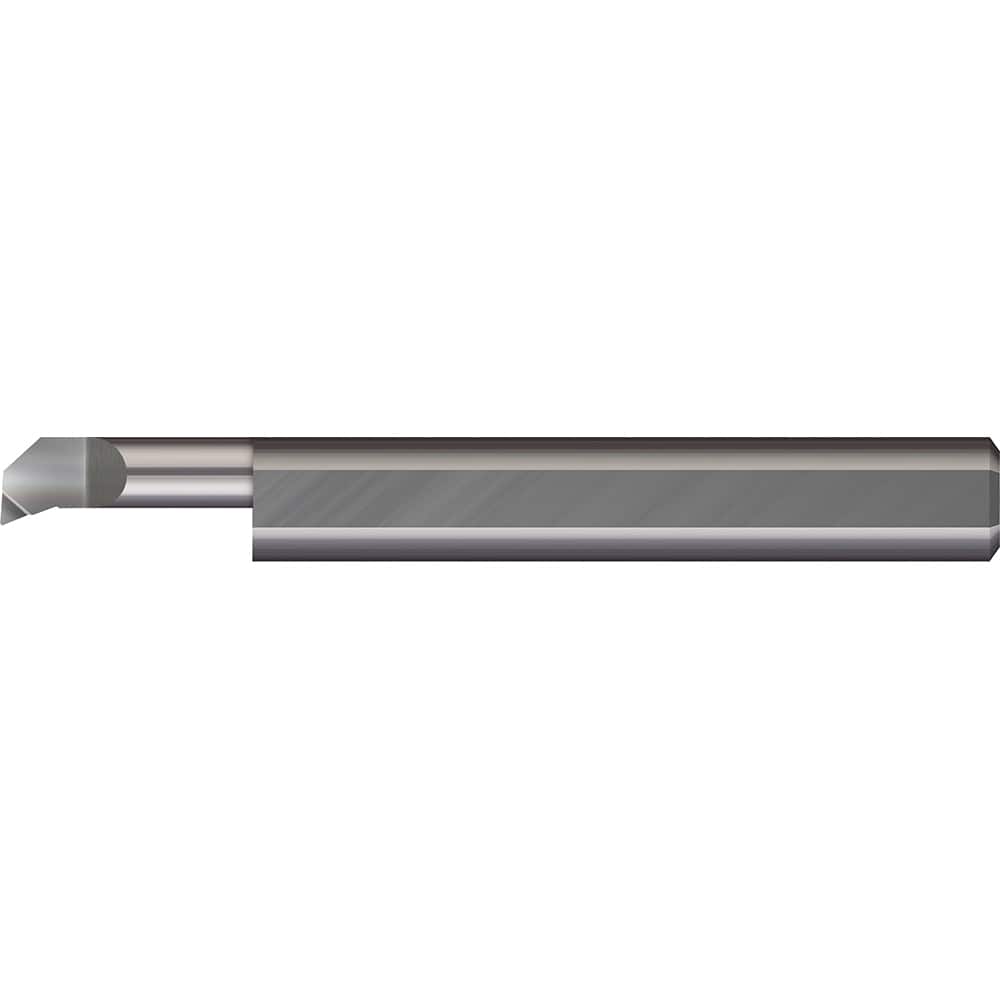

Boring Bar: 0.152″ Min Bore, 1/2″ Max Depth, Right Hand Cut, Solid Carbide 3/16″ Shank Dia, 2″ OAL, 0.002″ Corner Radius
Item #: 17623356
Brand: Micro 100
Model #: PBT2-140500
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1520 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.5000 |
| Shank Diameter (Decimal Inch) | 3/16 |
| Overall Length (Inch) | 2 |
| Finish Coating | Uncoated |
| Corner Radius (Decimal Inch) | 0.0020 |
| Manufacturers Catalog Number | PBT2-140500 |
| Maximum Bore Depth (Inch) | 1/2 |
| Offset (Decimal Inch) | 0.0460 |
| Overall Length (Decimal Inch) | 2.0000 |
| Projection (Decimal Inch - 4 Decimals) | 0.0250 |
