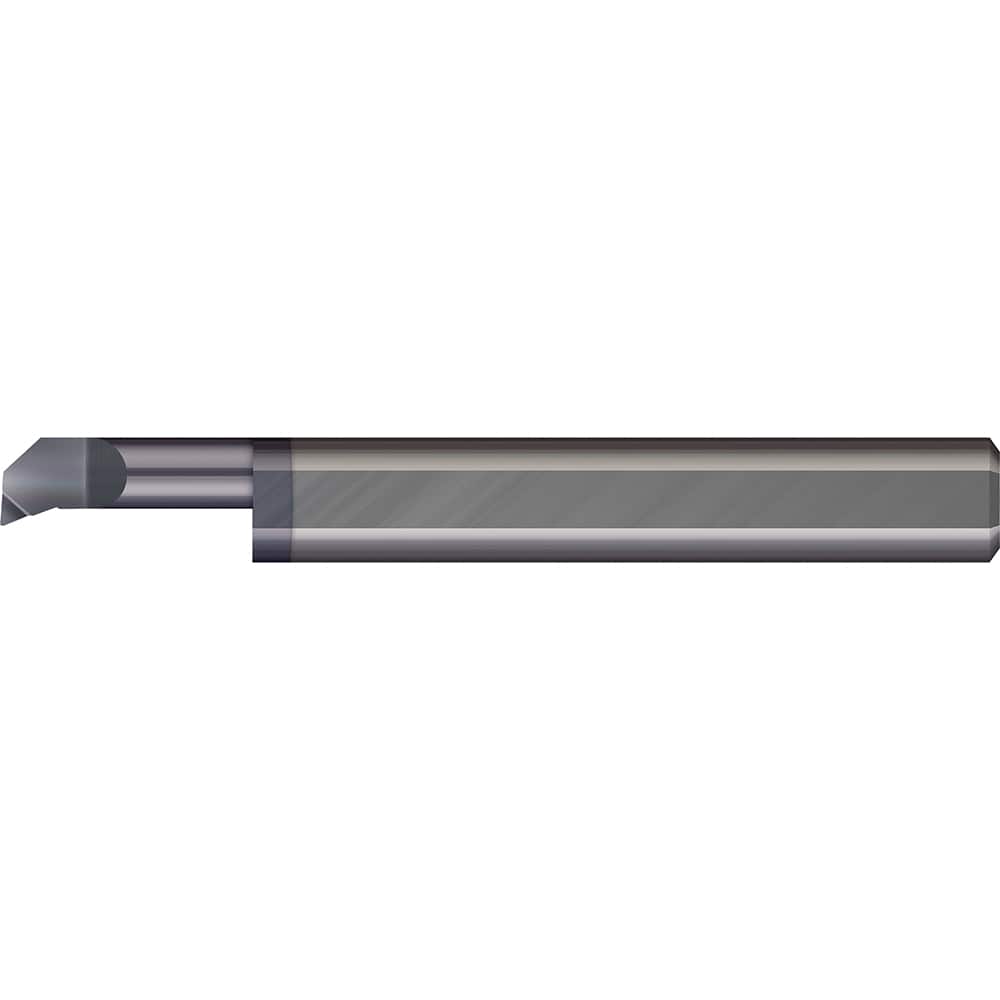

Boring Bar: 0.122″ Min Bore, 3/4″ Max Depth, Right Hand Cut, Solid Carbide 1/8″ Shank Dia, 1-1/2″ OAL, 0.004″ Corner Radius
Item #: 17623430
Brand: Micro 100
Model #: PBT4-110750X
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1220 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.7500 |
| Shank Diameter (Decimal Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Finish Coating | AlTiN |
| Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (mm) | 0.10 |
| Manufacturers Catalog Number | PBT4-110750X |
| Maximum Bore Depth (Inch) | 3/4 |
| Offset (Decimal Inch) | 0.0470 |
| Overall Length (Decimal Inch) | 1.5000 |
| Projection (Decimal Inch - 4 Decimals) | 0.0200 |
