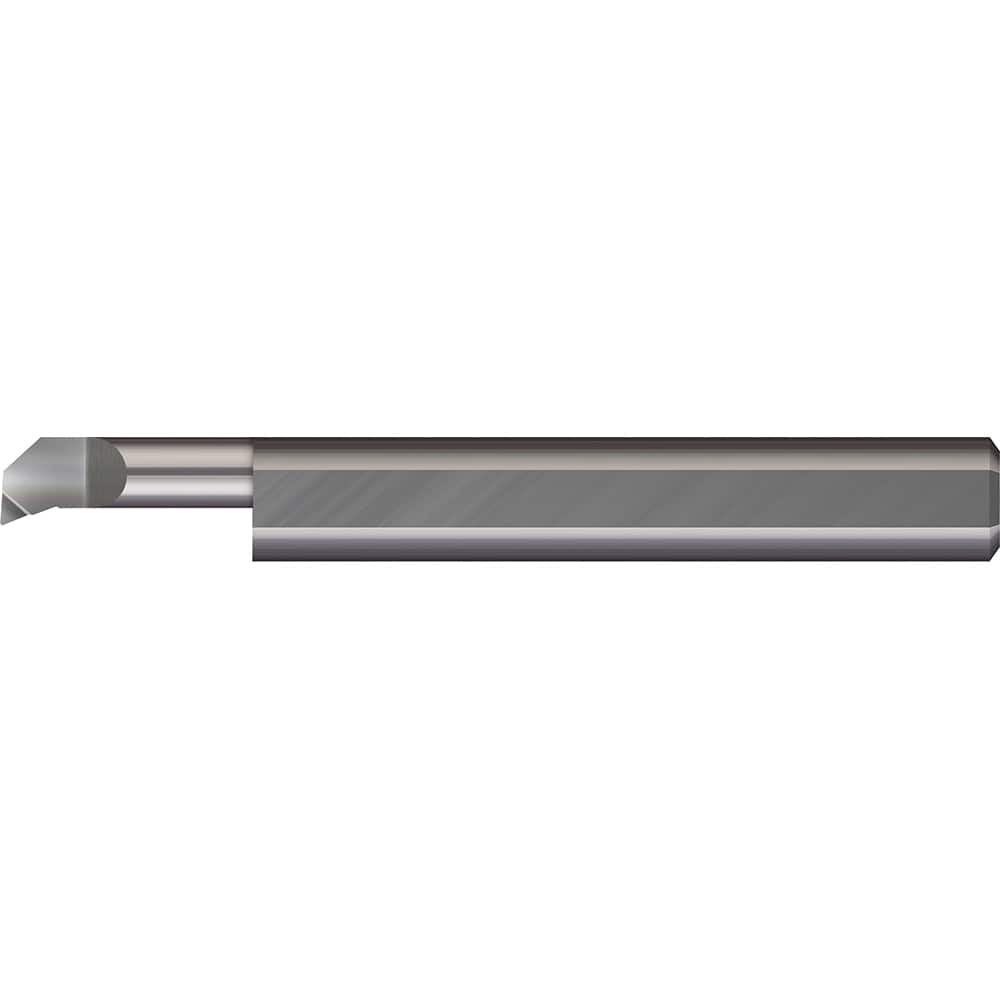

Boring Bar: 0.132″ Min Bore, 3/8″ Max Depth, Right Hand Cut, Solid Carbide 3/16″ Shank Dia, 2″ OAL, 0.004″ Corner Radius
Item #: 17623455
Brand: Micro 100
Model #: PBT4-120375
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1320 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.3750 |
| Shank Diameter (Decimal Inch) | 3/16 |
| Overall Length (Inch) | 2 |
| Finish Coating | Uncoated |
| Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (mm) | 0.10 |
| Manufacturers Catalog Number | PBT4-120375 |
| Maximum Bore Depth (Inch) | 3/8 |
| Offset (Decimal Inch) | 0.0260 |
| Overall Length (Decimal Inch) | 2.0000 |
| Projection (Decimal Inch - 4 Decimals) | 0.0200 |
