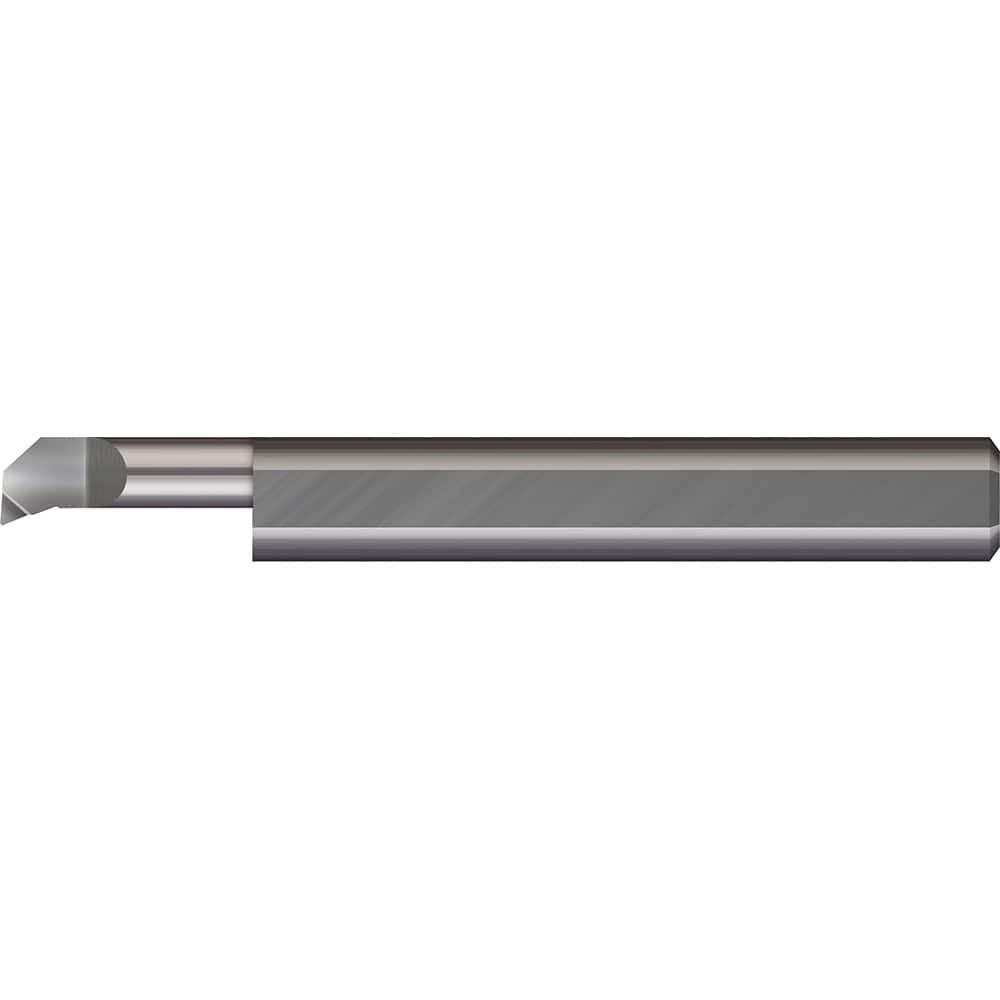

Boring Bar: 0.176″ Min Bore, 1″ Max Depth, Right Hand Cut, Solid Carbide 3/16″ Shank Dia, 2″ OAL, 0.006″ Corner Radius
Item #: 17623646
Brand: Micro 100
Model #: PBT6-1601000
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1760 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 1.0000 |
| Shank Diameter (Decimal Inch) | 3/16 |
| Overall Length (Inch) | 2 |
| Finish Coating | Uncoated |
| Corner Radius (Decimal Inch) | 0.0060 |
| Manufacturers Catalog Number | PBT6-1601000 |
| Maximum Bore Depth (Inch) | 1 |
| Offset (Decimal Inch) | 0.0660 |
| Overall Length (Decimal Inch) | 2.0000 |
| Projection (Decimal Inch - 4 Decimals) | 0.0250 |
