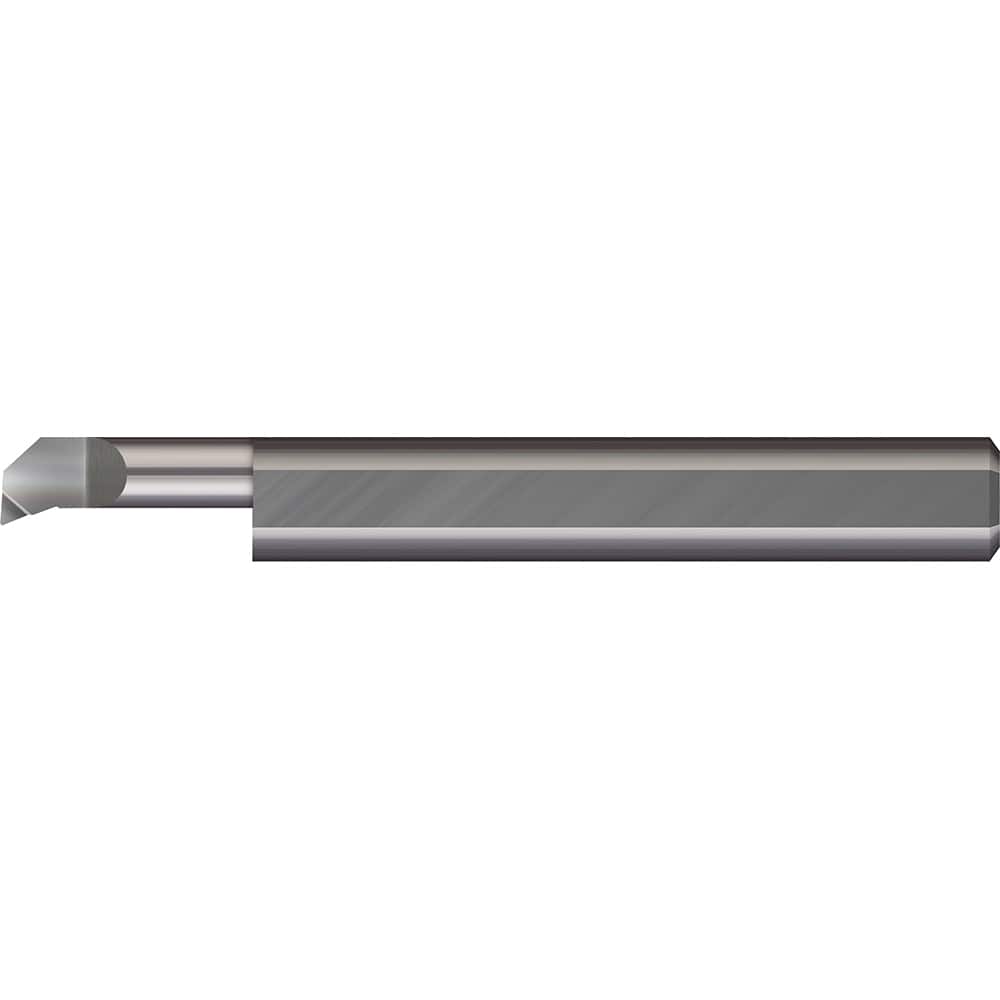

Boring Bar: 0.216″ Min Bore, 3/8″ Max Depth, Right Hand Cut, Solid Carbide 1/4″ Shank Dia, 2-1/2″ OAL, 0.006″ Corner Radius
Item #: 17623851
Brand: Micro 100
Model #: PBT6-200375
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.2160 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.3750 |
| Shank Diameter (Decimal Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Finish Coating | Uncoated |
| Corner Radius (Decimal Inch) | 0.0060 |
| Manufacturers Catalog Number | PBT6-200375 |
| Maximum Bore Depth (Inch) | 3/8 |
| Offset (Decimal Inch) | 0.0750 |
| Overall Length (Decimal Inch) | 2.5000 |
| Projection (Decimal Inch - 4 Decimals) | 0.0300 |
