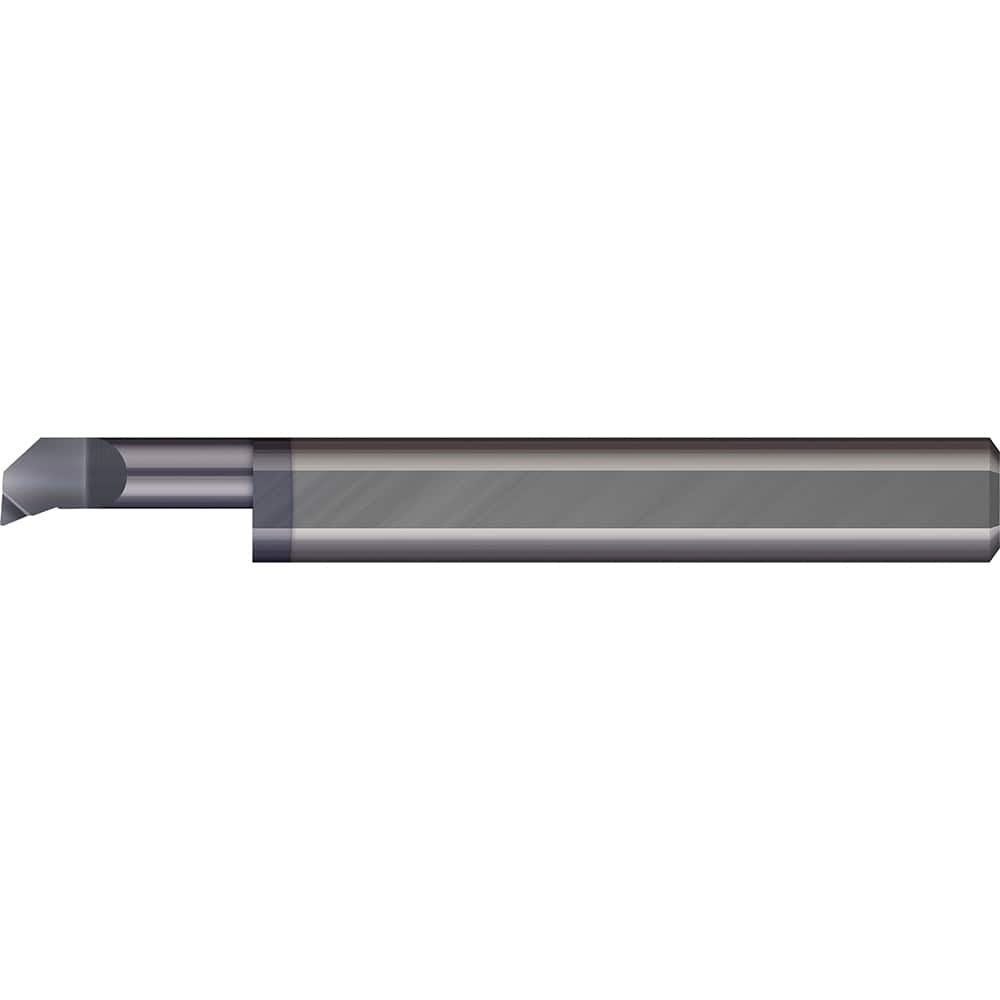

Boring Bar: 0.32″ Min Bore, 2.1″ Max Depth, Right Hand Cut, Solid Carbide 3/8″ Shank Dia, 3-1/2″ OAL, 0.006″ Corner Radius
Item #: 17626227
Brand: Micro 100
Model #: PBT6-3002100X
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.3200 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 2.1000 |
| Shank Diameter (Decimal Inch) | 3/8 |
| Overall Length (Inch) | 3-1/2 |
| Finish Coating | AlTiN |
| Corner Radius (Decimal Inch) | 0.0060 |
| Manufacturers Catalog Number | PBT6-3002100X |
| Offset (Decimal Inch) | 0.1120 |
| Overall Length (Decimal Inch) | 3.5000 |
| Projection (Decimal Inch - 4 Decimals) | 0.0500 |
