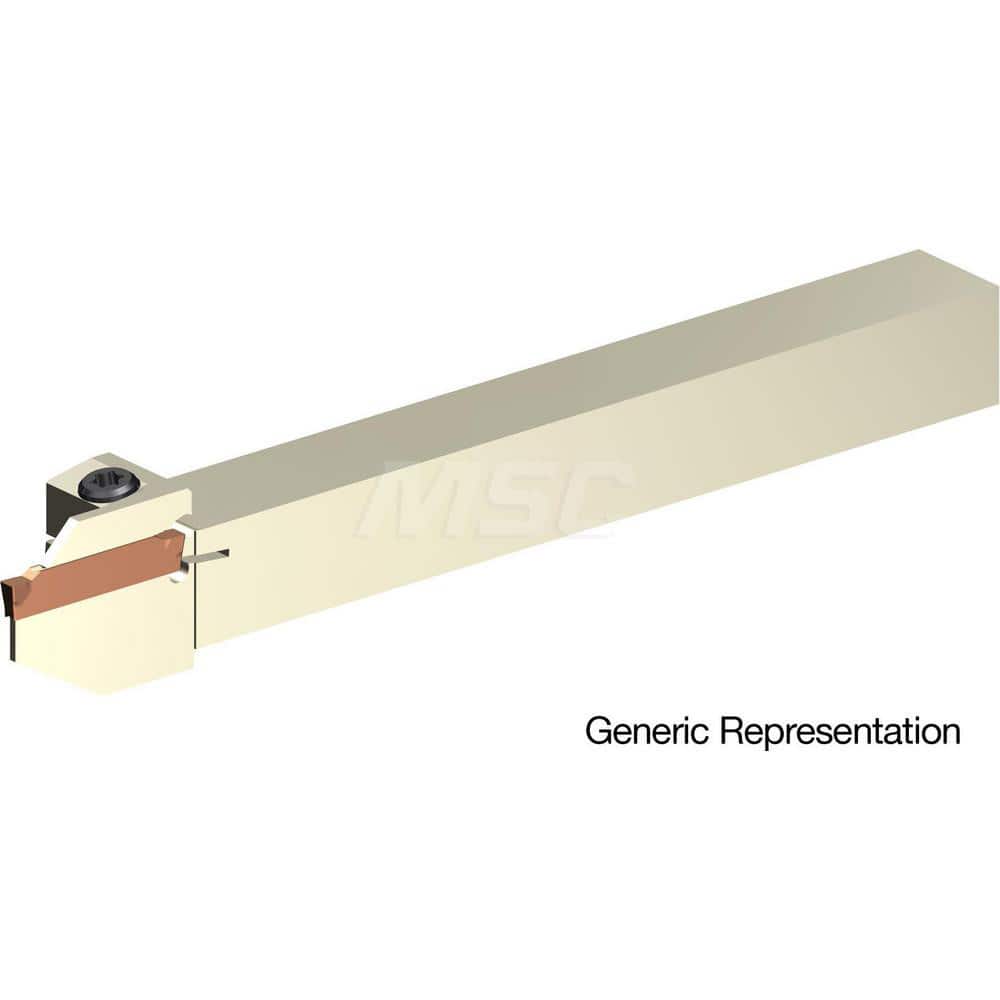

Indexable Cutoff Toolholder: 0.38″ Max Depth of Cut, 0.76″ Max Workpiece Dia, Right Hand 3/8″ Shank Height, 3/8″ Shank Width, Uses GCMN Inserts, Series GND
Item #: 17656083
Brand: Sumitomo
Model #: 2600W5F
Product Specifications
| Hand of Holder | Right |
| Maximum Depth of Cut (Decimal Inch) | 0.3800 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.7600 |
| Toolholder Style | GND |
| Compatible Insert Size Code | GCMN |
| Overall Length (Inch) | 4-3/4 |
| Insert Holding Method | Clamp |
| Shank Width/Diameter (Inch) | 3/8 |
| Shank Height (Inch) | 3/8 |
| Series | GND |
| Head Length (Decimal Inch) | 0.8780 |
| Maximum Insert Width (Decimal Inch) | 0.0937 |
