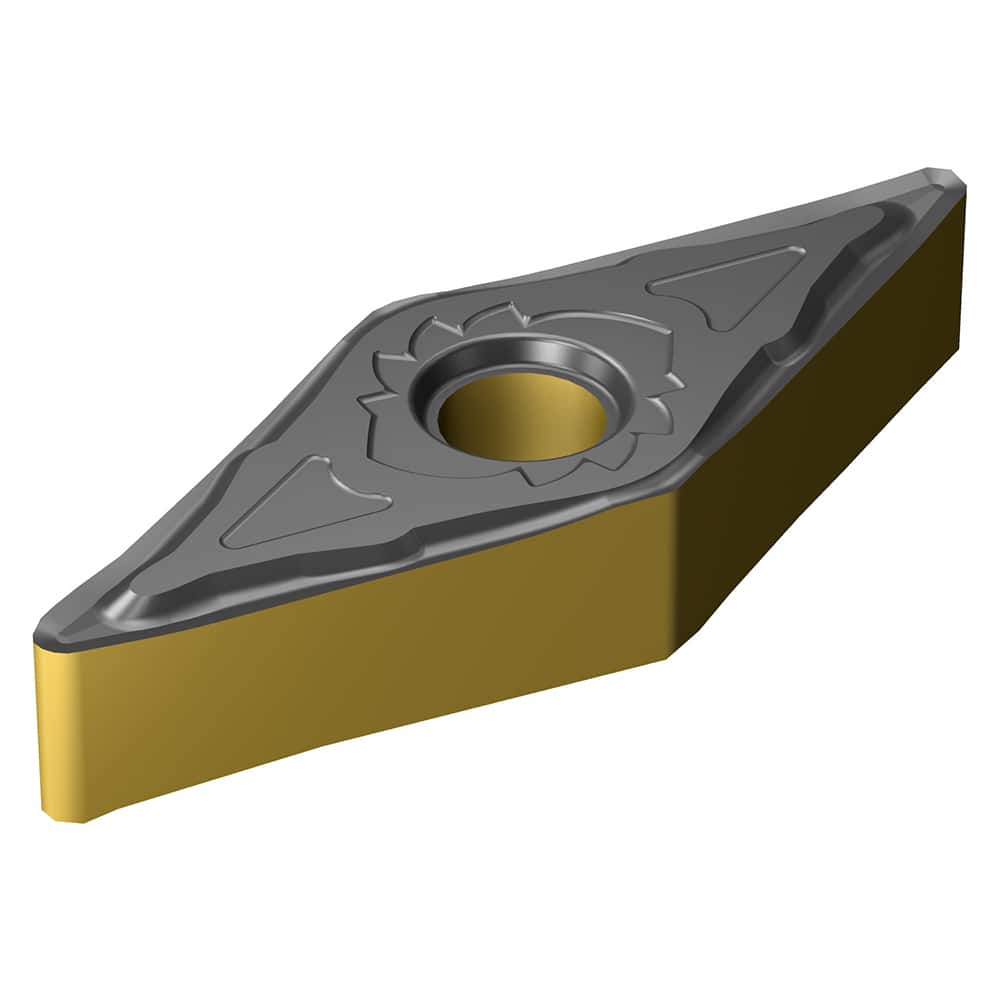

Turning Insert: VNGG 16 04 04-SGF S205, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0156″ Corner Radius, N/A Diamond 35 ™, Series T-Max P
Item #: 17673955
Brand: Sandvik Coromant
Model #: 8003619
Product Specifications
| Insert Style | VNGG |
| Insert Shape Code | V |
| Insert Size Code | 1604 |
| Insert Shape | Diamond 35? |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | S205 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Primary Workpiece Material | Superalloys & Titanium |
| Iso Code | VNGG 16 04 04-SGF S205 |
| Manufacturers Catalog Number | VNGG 16 04 04-SGF S205 |
| Chip Breaker | SGF |
| Coating/Finish | TiCN; TiN; Al2O3 |
