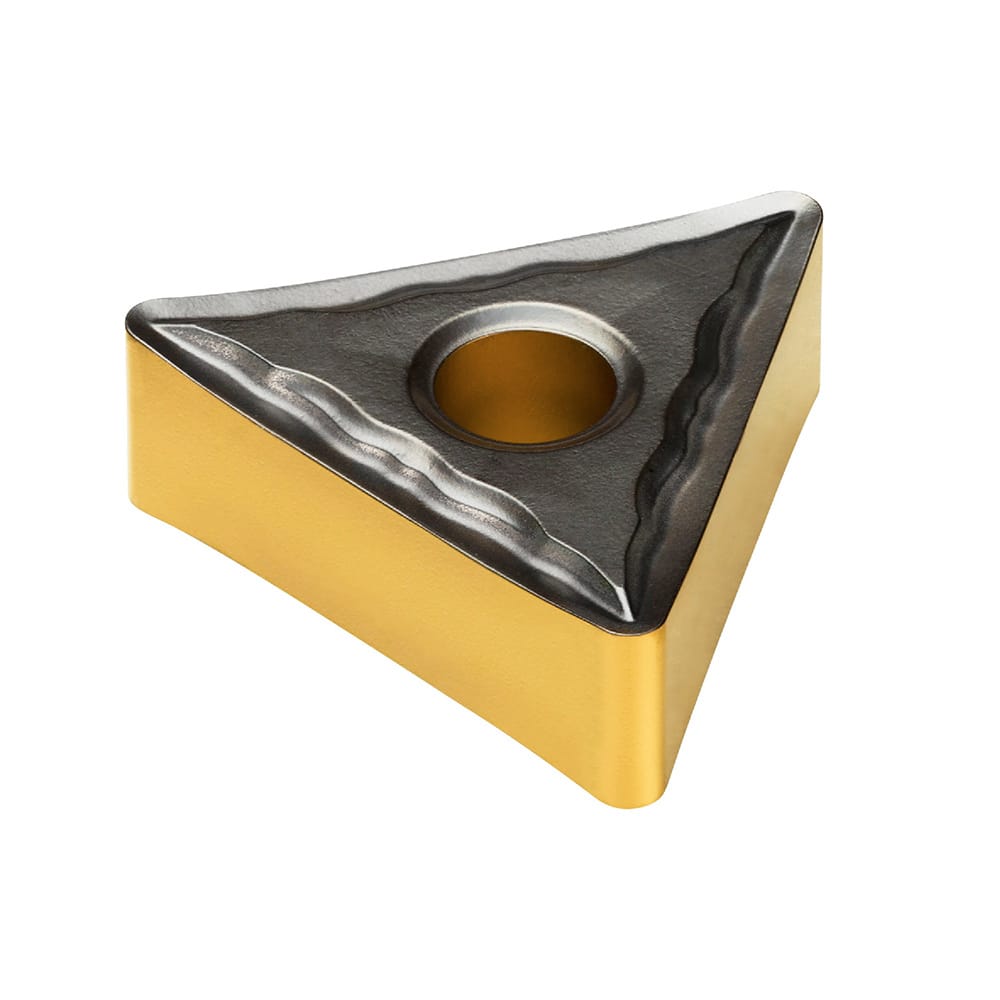

Turning Insert: TNMG 11 03 08-MF 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0313″ Corner Radius, N/A Triangle, Series T-Max P

Item #: 17674102
Brand: Sandvik Coromant
Model #: 8019616

Product Specifications

Insert Style TNMG

Insert Shape Code T

Insert Size Code 222

Insert Shape Triangle

Clearance Code N

Tolerance Code M

Insert Material Solid Carbide

Manufacturer Grade 4425

Inscribed Circle (Decimal Inch) 0.2500

Insert Holding Method Screw; Clamp

Insert Hand Neutral

Insert Thickness (Decimal Inch) 0.1250

Corner Radius (Decimal Inch) 0.0313

Relief Angle 0

Series T-Max P

Coating Process CVD

Primary Workpiece Material Steel

Secondary Workpiece Material Cast Iron

Iso Code TNMG 11 03 08-MF 4425

Manufacturers Catalog Number TNMG 11 03 08-MF 4425

Chip Breaker MF

Coating/Finish TiCN; TiN; Al2O3

Insert Style	TNMG
Insert Shape Code	T
Insert Size Code	222
Insert Shape	Triangle
Clearance Code	N
Tolerance Code	M
Insert Material	Solid Carbide
Manufacturer Grade	4425
Inscribed Circle (Decimal Inch)	0.2500
Insert Holding Method	Screw; Clamp
Insert Hand	Neutral
Insert Thickness (Decimal Inch)	0.1250
Corner Radius (Decimal Inch)	0.0313
Relief Angle	0
Series	T-Max P
Coating Process	CVD
Primary Workpiece Material	Steel
Secondary Workpiece Material	Cast Iron
Iso Code	TNMG 11 03 08-MF 4425
Manufacturers Catalog Number	TNMG 11 03 08-MF 4425
Chip Breaker	MF
Coating/Finish	TiCN; TiN; Al2O3
