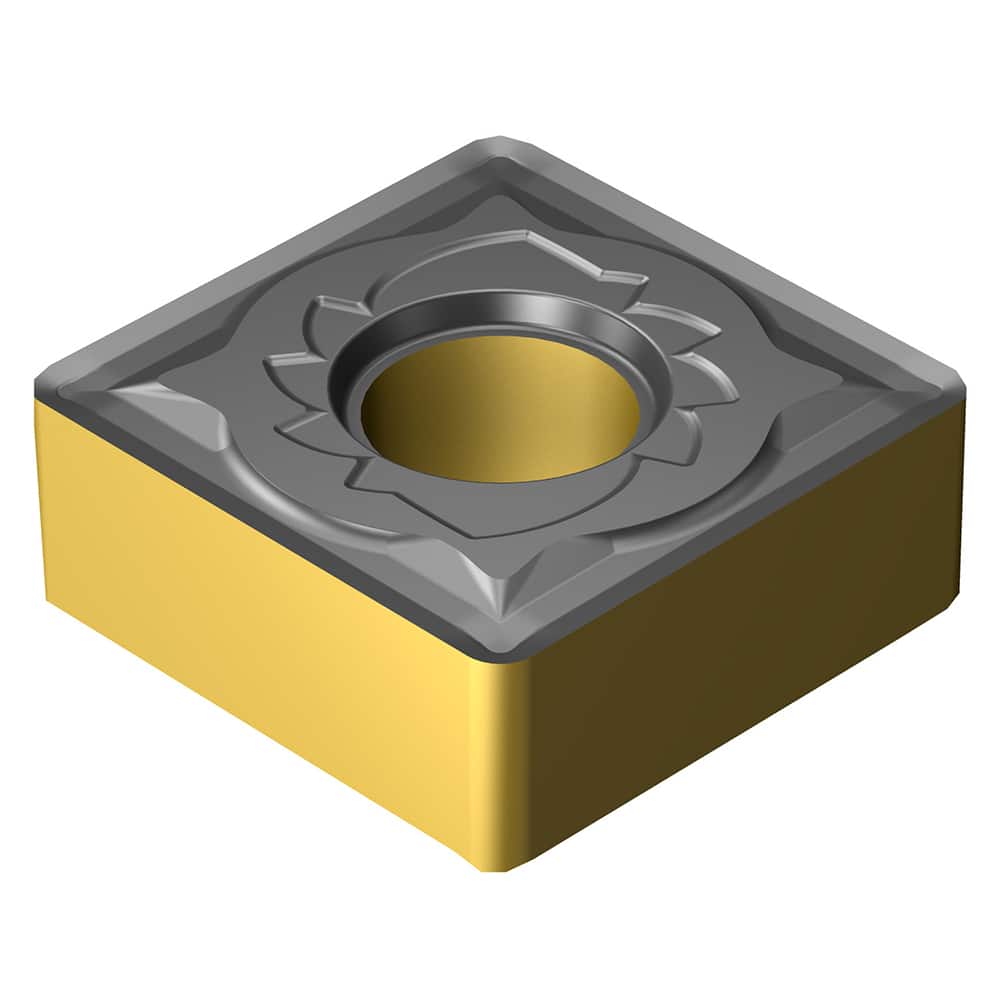

Turning Insert: SNMG 19 06 16-SMR S205, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0625″ Corner Radius, N/A Square, Series T-Max P
Item #: 17674680
Brand: Sandvik Coromant
Model #: 8003618
Product Specifications
| Insert Style | SNMG |
| Insert Shape Code | S |
| Insert Size Code | 1906 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | S205 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Primary Workpiece Material | Superalloys & Titanium |
| Iso Code | SNMG 19 06 16-SMR S205 |
| Manufacturers Catalog Number | SNMG 19 06 16-SMR S205 |
| Chip Breaker | SMR |
| Coating/Finish | TiCN; TiN; Al2O3 |
