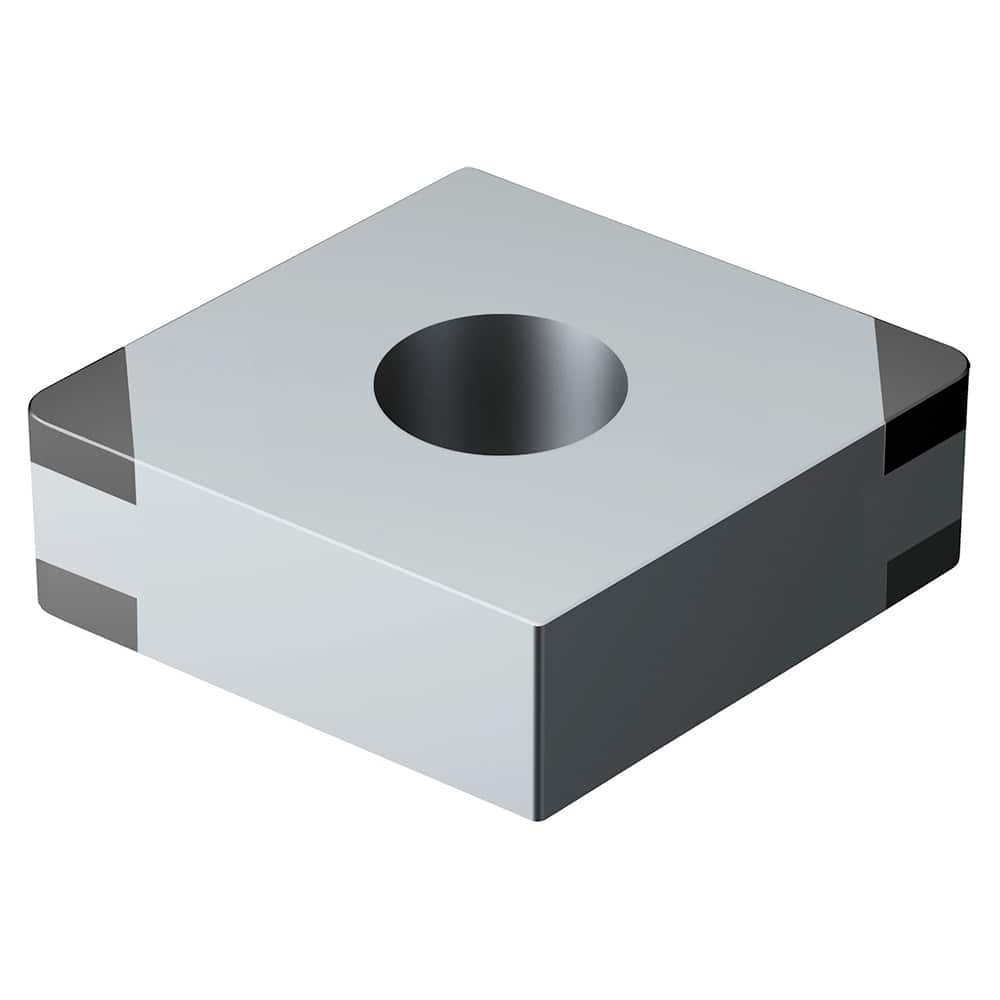

Turning Insert: CNGA433AA 7014, Cubic Boron Nitride Uncoated Finish, Neutral, 0.0469″ Corner Radius, N/A Diamond 80 ™, Series T-Max P
Item #: 17674813
Brand: Sandvik Coromant
Model #: 7941840
Product Specifications
| Insert Style | CNGA |
| Insert Shape Code | C |
| Insert Size Code | 433 |
| Insert Shape | Diamond 80? |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | 7014 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | Uncoated |
| Primary Workpiece Material | Hard Material |
| Iso Code | CNGA120412EA 7014 |
| Manufacturers Catalog Number | CNGA120412EA 7014 |
| Chip Breaker | EA |
| Coating/Finish | Uncoated |
