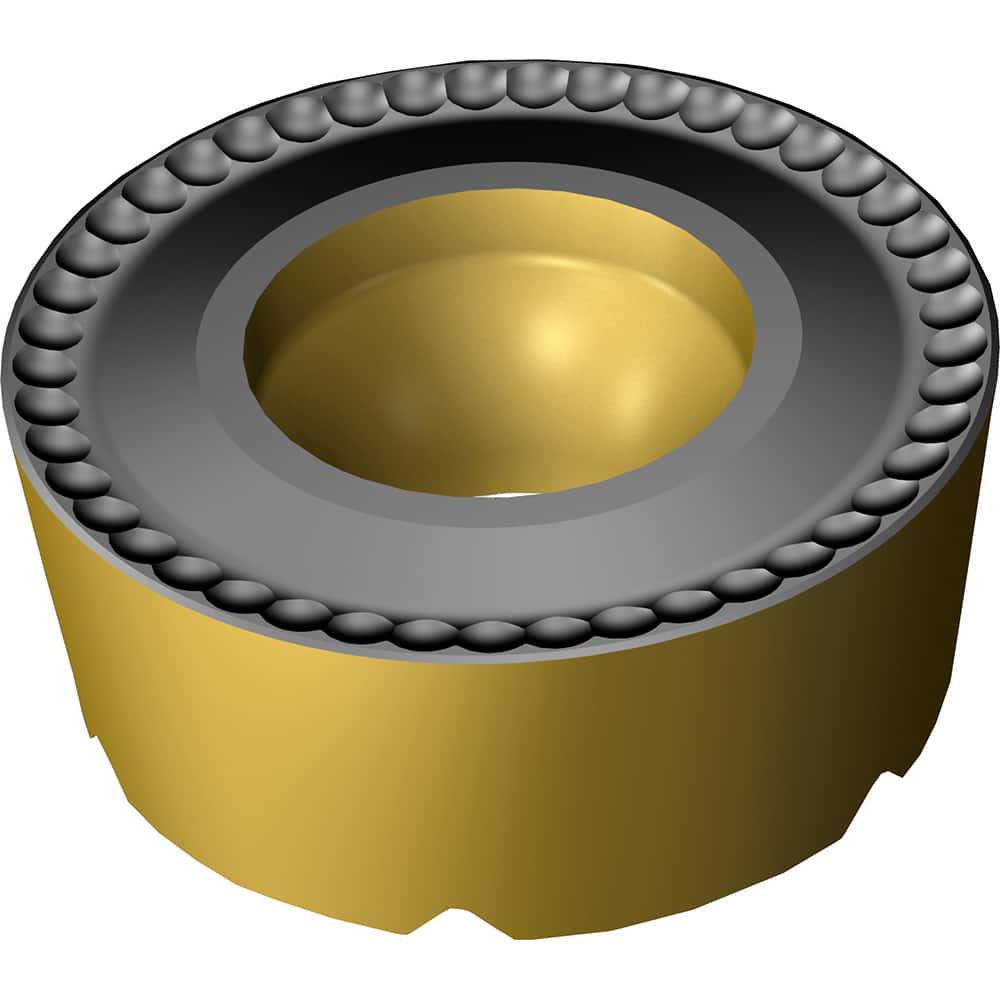

Turning Insert: RCMT 16 06 MP-H7 S205, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.3150″ Corner Radius, N/A Round, Series CoroTurn 107
Item #: 17674904
Brand: Sandvik Coromant
Model #: 7960698
Product Specifications
| Insert Style | RCMT |
| Insert Shape Code | R |
| Insert Size Code | 1606 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | S205 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Relief Angle | 7 |
| Series | CoroTurn 107 |
| Coating Process | CVD |
| Primary Workpiece Material | Superalloys & Titanium |
| Iso Code | RCMT 16 06 MP-H7 S205 |
| Manufacturers Catalog Number | RCMT 16 06 MP-H7 S205 |
| Chip Breaker | H7 |
| Coating/Finish | TiCN; TiN; Al2O3 |
