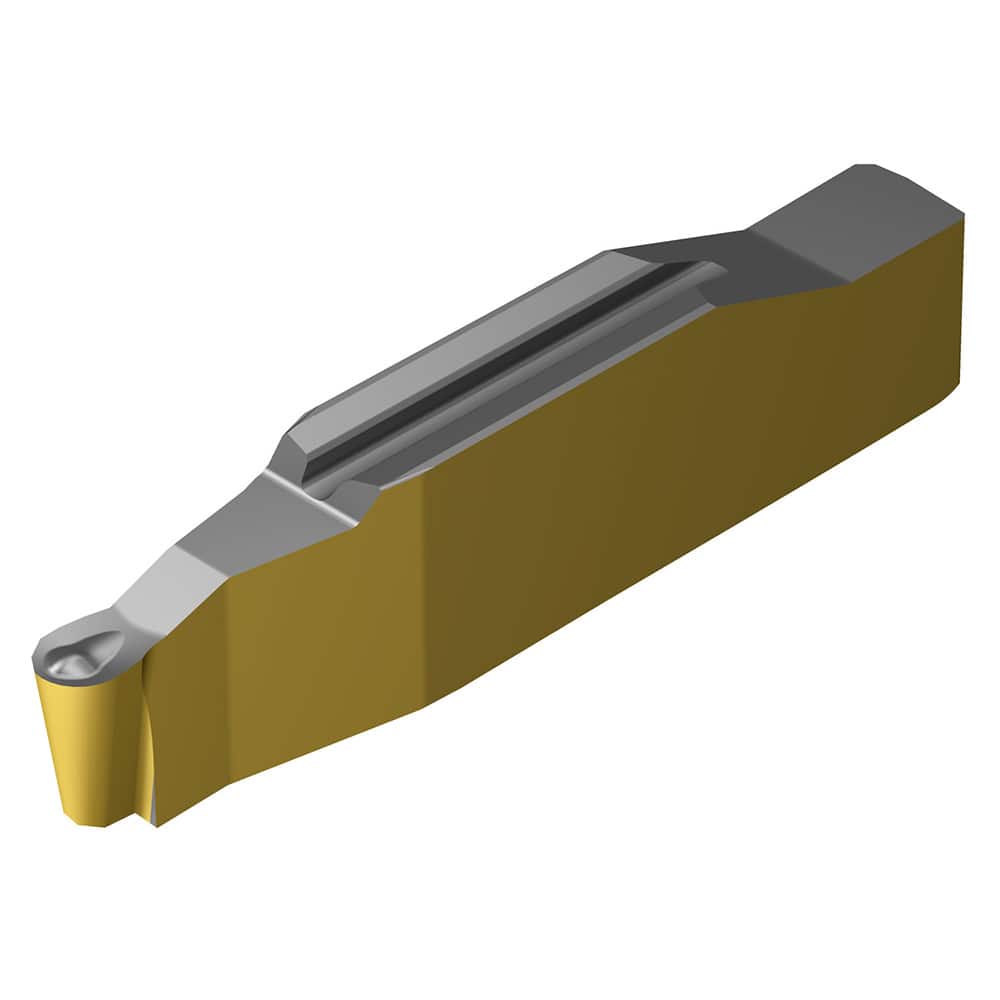

Profiling Insert: N123H1N 1.5 S205, Solid Carbide 0.0295″ Corner Radius, Series CoroCut 1-2
Item #: 17676669
Brand: Sandvik Coromant
Model #: 8003661
Product Specifications
| Insert Style | N123 |
| Insert Size Code | H1N 1.5 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | S205 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0295 |
| Relief Angle | 7 |
| Chipbreaker | RO |
| Series | CoroCut 1-2 |
| Coating Process | CVD |
| Primary Workpiece Material | Superalloys & Titanium |
| Shape | Irregular |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Width (Decimal Inch - 4 Decimals) | 0.0591 |
