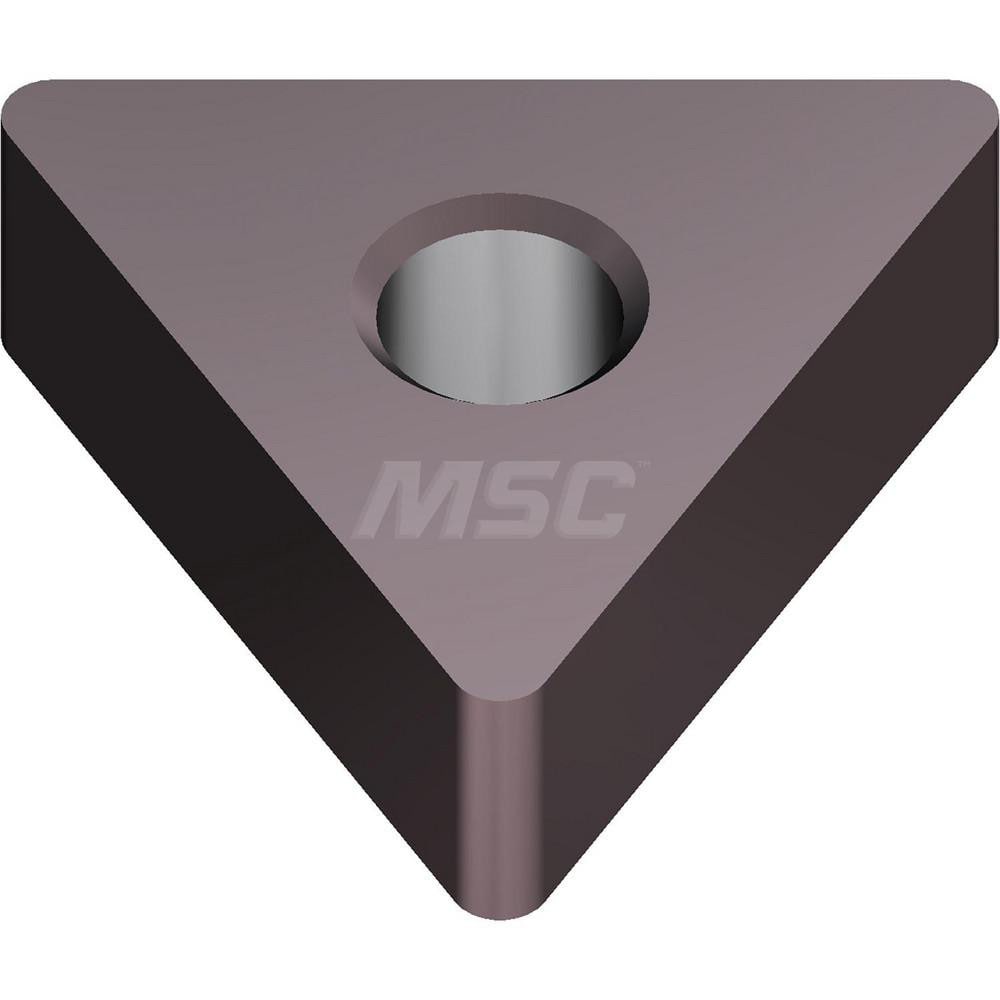

Turning Insert: TNGA331 AC503U, Solid Carbide Super ZX Finish, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 60.0 ° N/A Series AC503U
Item #: 17686486
Brand: Sumitomo
Model #: 10JJ131
Product Specifications
| Insert Style | TNGA |
| Insert Shape Code | T |
| Insert Size Code | 331 |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC503U |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | AC503U |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (mm) | 16.50 |
| Primary Workpiece Material | Hardened Steel |
| Iso Code | TNGA160404 |
| Manufacturers Catalog Number | TNGA331-AC503U |
| Chip Breaker | A |
| Coating/Finish | Super ZX |
