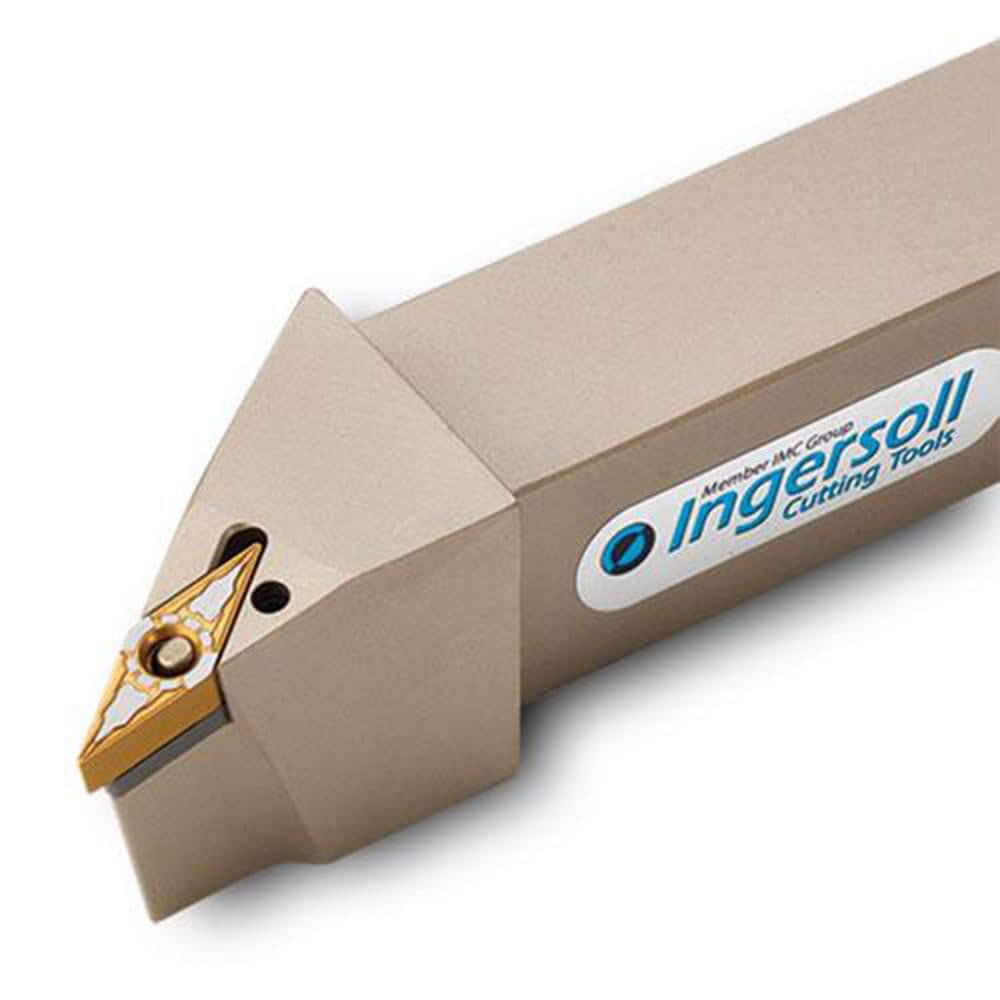

Indexable Turning Toolholders; Cutting Direction: Left Hand; Compatible Insert Size Code: VN..2.53.; Toolholder Style: HVJNL; Rake: Negative; Multi-use Tool: No; Lead Angle: 93.0; Insert Holding Method: Lever; Shank Width (Decimal Inch): 1.0000; Shank Wid
Item #: 17723941
Brand: Ingersoll Cutting Tools
Model #: 6144976
Product Specifications
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | VN..2.53. |
| Toolholder Style | HVJNL |
| Rake | Negative |
| Multi-use Tool | No |
| Lead Angle | 93.0 |
| Insert Holding Method | Lever |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Width (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Series | L (Gold Rhino); HVJNR |
| Overall Length (mm) | 6.00 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.6900 |
| Toolholder Material | Steel |
