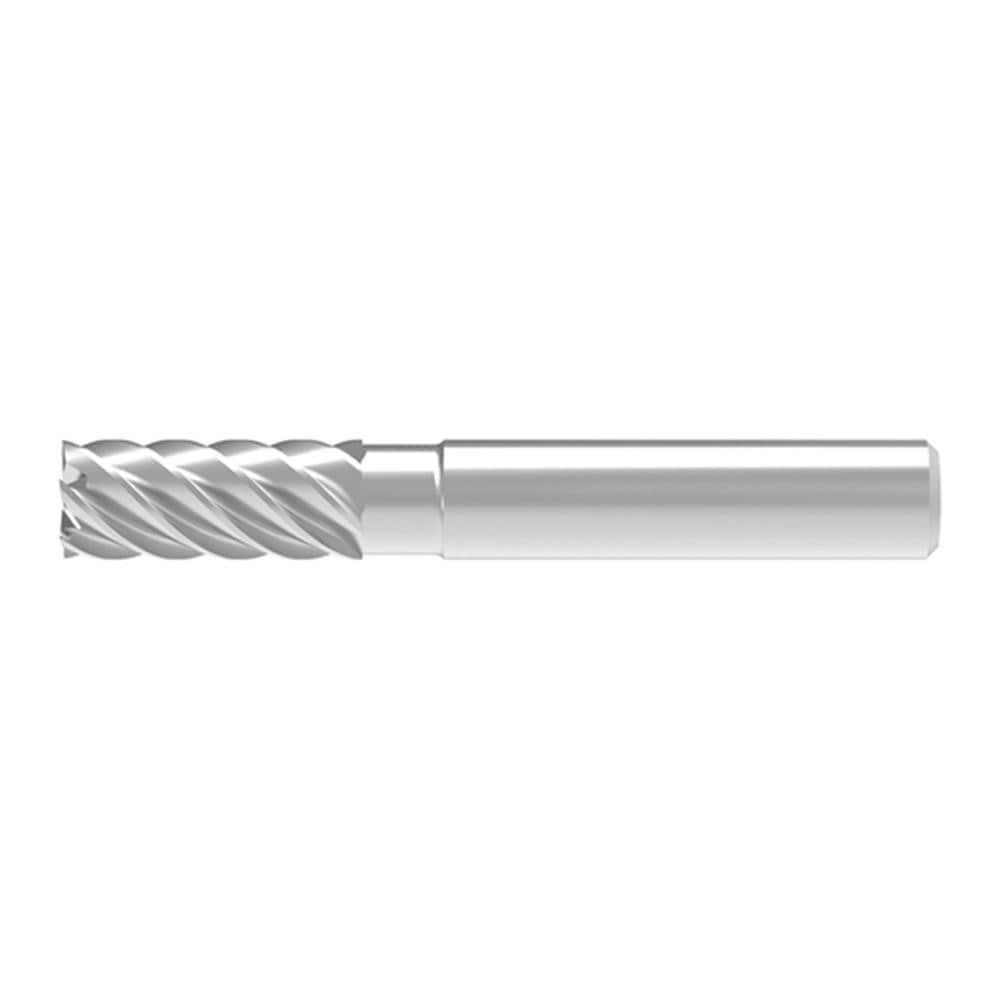

Corner Chamfer End Mill: 8.00 mm Dia, 22.00 mm LOC, 6 Flute, 0.04 mm Chamfer Width, Solid Carbide
Item #: 08796070
Brand: WNT
Model #: 5201508000
Product Specifications
| Mill Diameter (mm) | 8.00 |
| Number Of Flutes | 6 |
| Length of Cut (mm) | 22.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.04 |
| Overall Length (mm) | 70.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 8.00 |
| Neck Diameter (mm) | 7.800 |
| UNSPSC Code | 23241614 |
| Series | 52015 |
| Coating Classification | Uncoated |
