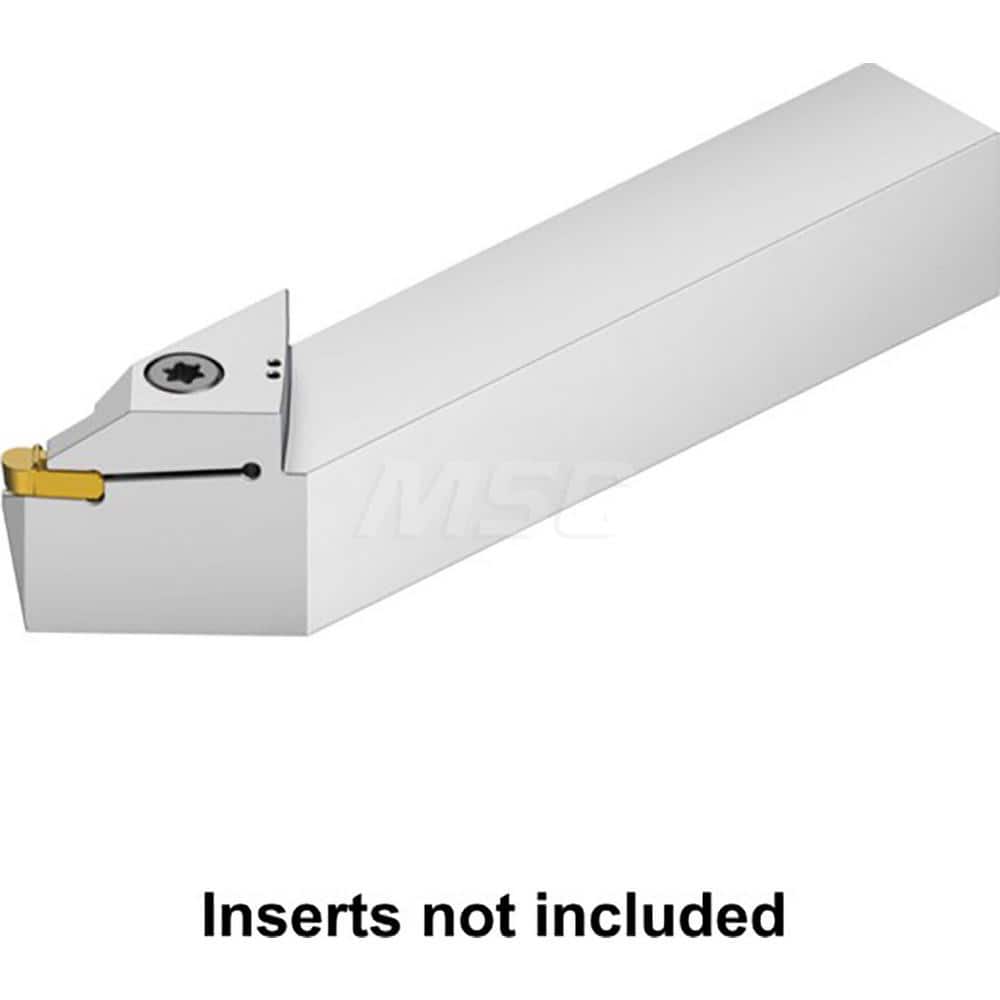

Indexable Cutoff Toolholder: 5.5 mm Max Depth of Cut, 5.5 mm Max Workpiece Dia, Right Hand 25 mm Shank Height, 25 mm Shank Width, Uses EG0600M06P04 Inserts, Series Beyond Evolution
Item #: 17833856
Brand: Kennametal
Model #: 6811570
Product Specifications
| Hand of Holder | Right |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Workpiece Diameter (mm) | 5.50 |
| Toolholder Style | EV |
| Compatible Insert Size Code | EG0600M06P04 |
| Overall Length (mm) | 150.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Shank Length (mm) | 102.25 |
| Series | Beyond Evolution |
| Head Length (mm) | 47.75 |
| Complete Insert Compatibility | EG0600M06P04 |
| Manufacturers Catalog Number | EV45MR2525M06C |
| Coolant Through | Yes |
