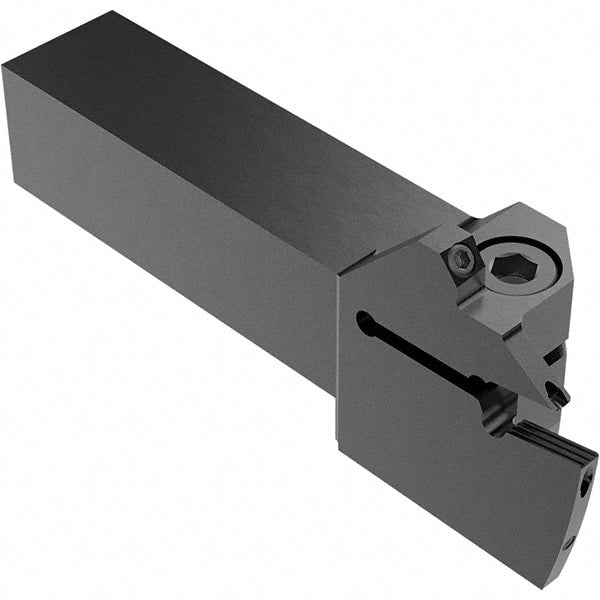

Seco - CFI, External, Left Hand, 19.5mm Max Depth of Cut, 6mm Max Groove Width, Indexable Grooving Tool Holder - LC.. 1606.. Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 111mm OAL, Through Coolant
Item #: 17906975
Brand: Seco
Model #: 03244745
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 19.50 |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Groove Width (mm) | 6.00 |
| Overall Length (mm) | 111.00 |
| Toolholder Style | CFI |
| Insert Compatibility | LC.. 1606.. |
| Shank Height (mm) | 20.00 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | JETI |
| Through Coolant | Through Coolant |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning; Grooving; Parting |
| Insert Holding Method | Clamp |
| Insert Seat Size | 6 |
| Number of Inserts Used on Toolholder | 1 |
| Head Length (mm) | 47.00 |
| Shank Length (mm) | 64.00 |
| Toolholder Material | Steel |
