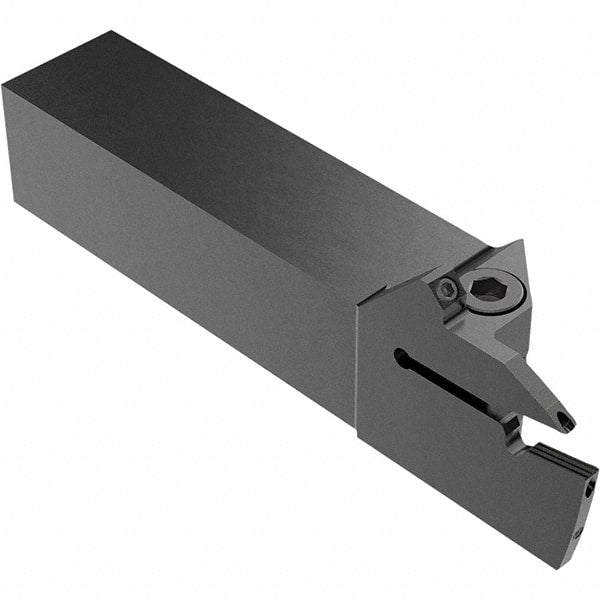

Seco - CFM, External, Left Hand, 26.5mm Max Depth of Cut, 5mm Max Groove Width, Indexable Grooving Tool Holder - LC.. 1605.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 140mm OAL, Through Coolant
Item #: 17907197
Brand: Seco
Model #: 03244736
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 26.50 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (mm) | 140.00 |
| Toolholder Style | CFM |
| Insert Compatibility | LC.. 1605.. |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | JETI |
| Through Coolant | Through Coolant |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning; Grooving; Parting |
| Insert Holding Method | Clamp |
| Insert Seat Size | 5 |
| Number of Inserts Used on Toolholder | 1 |
| Head Length (mm) | 56.00 |
| Shank Length (mm) | 84.00 |
| Toolholder Material | Steel |
