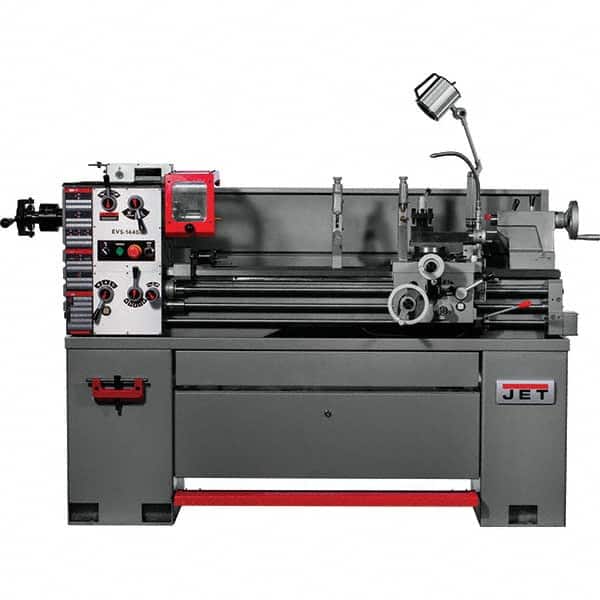

Toolroom Lathe: 14″ Swing, 40″, Electronic Variable Speed 1-1/2″ Spindle Bore Dia, D1-4, 40 to 2,000 RPM, 3 Phase, 230/460V, 3 hp

Item #: 17987637
Brand: Jet
Model #: 311449

Product Specifications

Horsepower	3.00
Phase	3
Spindle Speed Control	Electronic Variable Speed
Bed Width (Inch)	7.4800
Bed Width	7.48 in
Distance Between Centers (Inch)	40
Distance Between Centers	40 in
Gap Length (Decimal Inch)	9.5000
Gap Length	9.5 in
Swing	14 in
Swing (Inch)	14
Spindle Bore Diameter (Inch)	1-1/2
Minimum Spindle Speed	40
Spindle Nose Designation	D1-4
Voltage	230/460
Maximum Spindle Speed	2000
Overall Height	50.0000 in
Overall Depth	28.3 in
Minimum Metric Pitch (Decimal Inch)	0.5000
Maximum Metric Pitch (Decimal Inch)	12.0000
Number of Inch Threads	34
Minimum Metric Pitch	0.5 in
Maximum Metric Pitch	12.0 in
Number of Metric Threads	34
Spindle Taper Size (Sleeve)	5MT
Spindle Taper Size	3MT
Tailstock Taper Size	3MT
Tailstock Travel (Decimal Inch)	6.1250
Top Slide Travel (Decimal Inch)	3.5000
Tailstock Travel	6.125 in
Maximum Threads Per Inch	56
Min. Longitudinal Feed Per Rev. (Decimal Inch)	0.0016
Overall Height (Decimal Inch)	50.0000
Overall Depth (Inch)	28.3000
Includes	EVS-1440 Electronic Variable Speed Lathe with Newall DP700 DRO & Collet Closer
Overall Length (Decimal Inch)	68.5000
Overall Length (Inch)	68-1/2
Minimum Longitudinal Feed Per Revolution	0.0016 in
Max. Longitudinal Feed Per Rev. (Decimal Inch)	0.0460
Maximum Longitudinal Feed Per Revolution	0.046 in
Max. Cross Feed Rate Per Revolution (Decimal Inch)	25.0000
Maximum Cross Feed Rate Per Revolution	25.0 in
Swing Over Cross Slide (Decimal Inch)	7.0000
Swing Over Cross Slide (Inch)	7
Swing Over Cross Slide	7 in
Swing Over Gap (Inch)	19-1/2
Certification	UL Listed; CSA Certified
Machine Type	Bench Lathe
Warranty	2 Year

Show More

MSC Part #	17987637
Mfr Part #	311449
