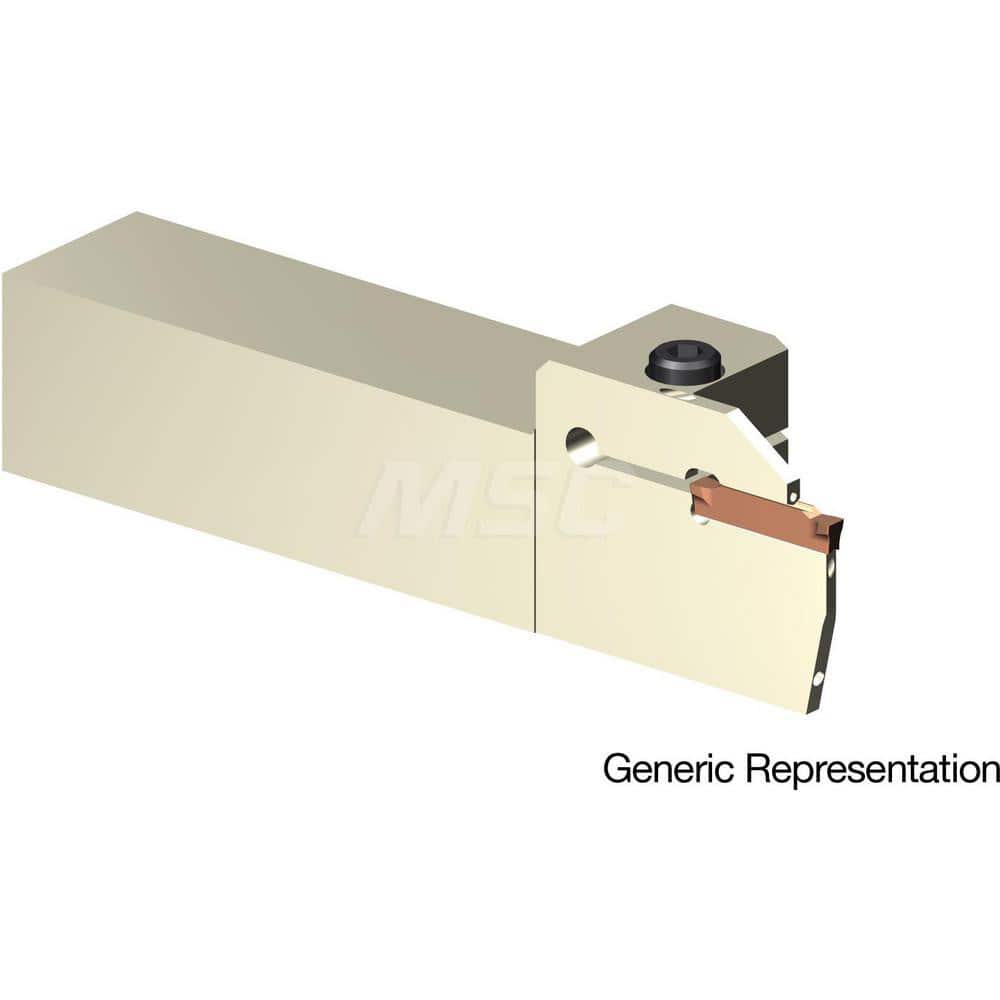

Indexable Cutoff Toolholder: 3/4″ Max Depth of Cut, 1-1/2″ Max Workpiece Dia, Left Hand 1″ Shank Height, 1″ Shank Width, Uses GCMN Inserts, Series GND
Item #: 17996364
Brand: Sumitomo
Model #: 2600W8A
Product Specifications
| Hand of Holder | Left |
| Maximum Depth of Cut (Inch) | 3/4 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5000 |
| Maximum Workpiece Diameter (Inch) | 1-1/2 |
| Toolholder Style | GND |
| Compatible Insert Size Code | GCMN |
| Overall Length (Inch) | 5 |
| Insert Holding Method | Clamp |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Series | GND |
| Head Length (Decimal Inch) | 1.7520 |
| Maximum Insert Width (Decimal Inch) | 0.1252 |
| Coolant Through | Yes |
