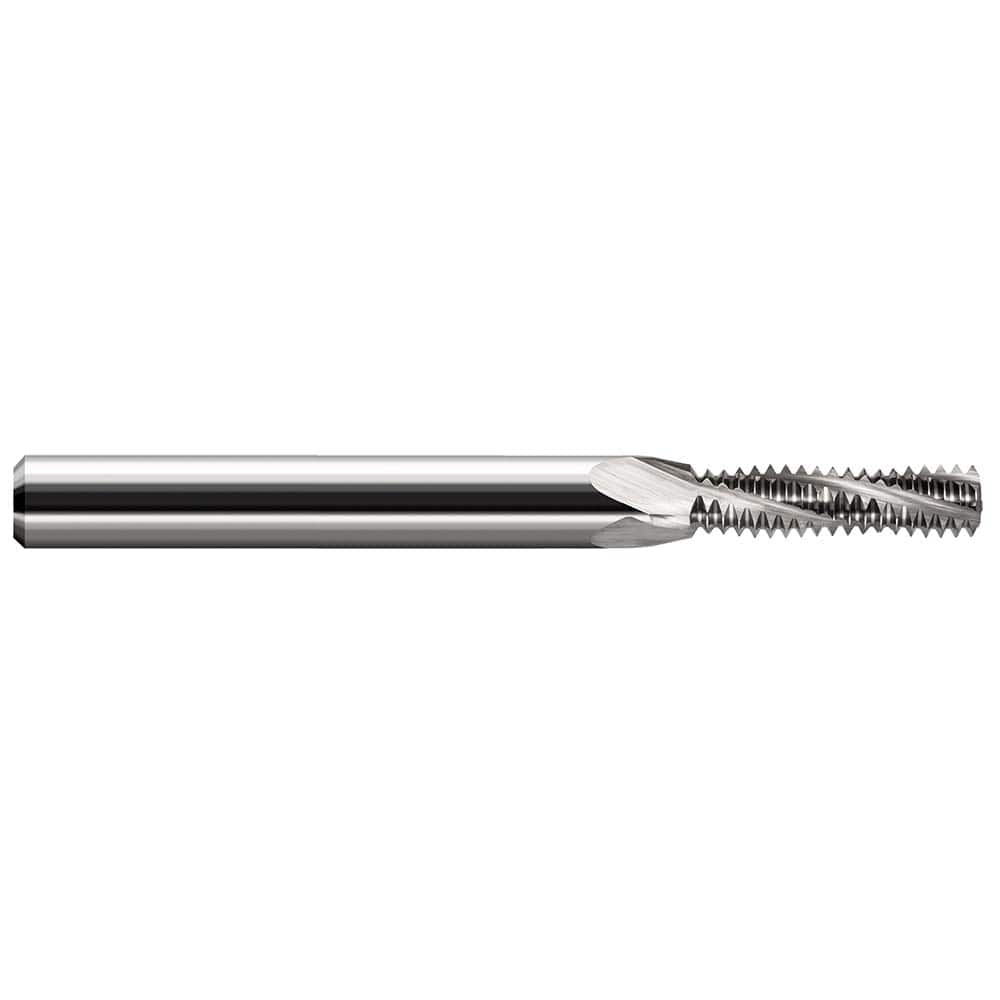

Harvey Tool - 8-36 Internal 36 TPI 3/16" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 18028878
Brand: Harvey Tool
Model #: 987131
Product Specifications
| Threads Per Inch | 36 |
| Material | Solid Carbide |
| Thread Size (Inch) | 8-36 |
| Thread Type | Internal |
| Shank Diameter (Inch) | 3/16 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1310 |
| Length of Cut (Decimal Inch) | 0.4170 |
| Finish/Coating | Uncoated |
| Through Coolant | No |
| Minimum Nominal Diameter | #8 |
| Minimum Nominal Diameter (Decimal Inch) | 0.1640 |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (Inch) | 2-1/2 |
