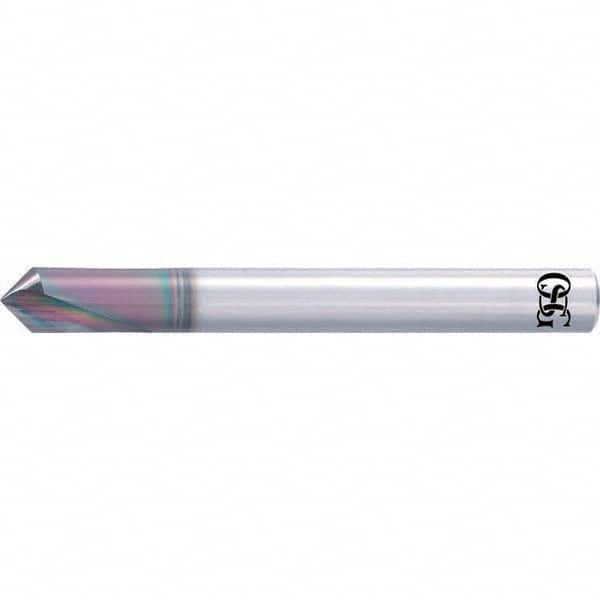

140° 132mm OAL 2-Flute Solid Carbide Spotting Drill EgiAs Finish, 46mm Flute Length, 19.05mm Shank Diam, RH Cut, Series 5190
Item #: 18075135
Brand: OSG
Model #: 519037517
Product Specifications
| Drill Point Angle | 140 |
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 132.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | EgiAs |
| Single/Double Ended | Single |
| Series | 5190 |
| Overall Length (Decimal Inch) | 5.1969 |
| Flute Length (Decimal Inch) | 1.8110 |
| Flute Length (mm) | 46.00 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (mm) | 19.05 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Helix Angle | 25 |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
