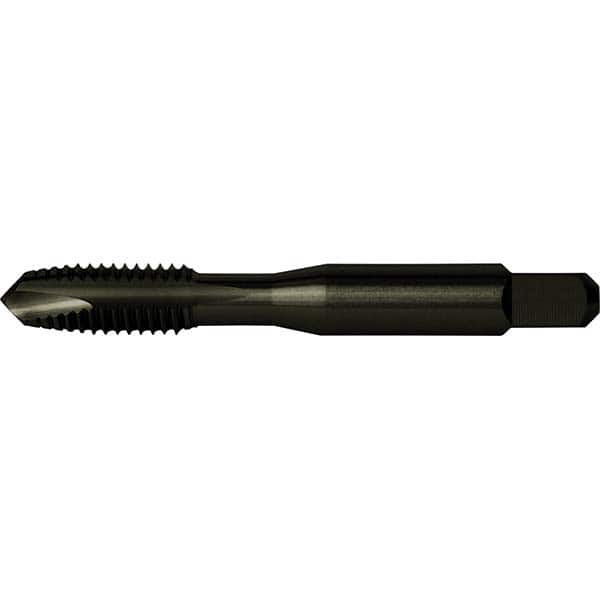

Cleveland - #10-24 UNC Class 2B 2-Flute Black Oxide Finish High Speed Steel Spiral Point Tap
Item #: 18100065
Brand: Cleveland
Model #: C57001
Product Specifications
| Thread Size (Inch) | #10-24 |
| Number of Flutes | 2 |
| Chamfer | Plug |
| Class of Fit | 2B |
| Thread Limit | H3 |
| Finish/Coating | Black Oxide |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.38000 |
| Oversize | No |
| Thread Standard | UNC |
| Material Grade | M2 |
| Thread Length (Inch) | 0.5 |
| Neck Length (Inch) | 0.39 |
| Style | Spiral Point |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Size (Decimal Inch) | 0.2500 |
| Material Application | Low Carbon Steel; Alloyed Steel; Stainless Steel; Cast Iron; Hardened Materials |
| Material Application2 | Low Carbon Steel; Alloyed Steel; Stainless Steel; Cast Iron; Hardened Materials |
| PSC Code | 5133 |
