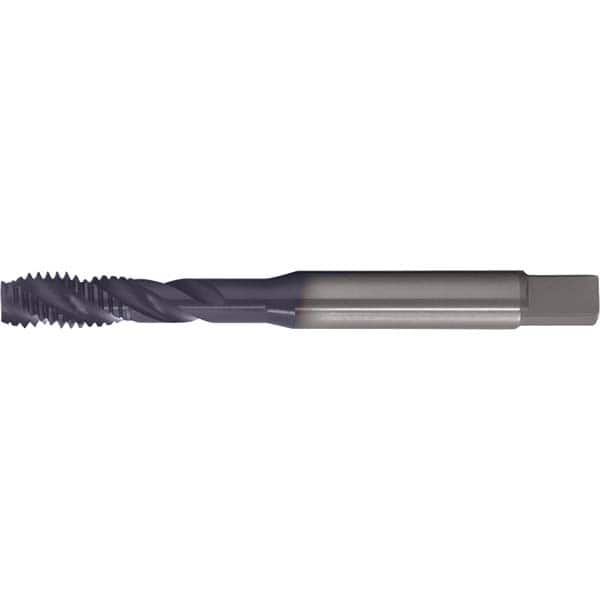

Spiral Flute Tap: 9/16-12, UNC, 4 Flute, Modified Bottoming, 2B Class of Fit, HSS-E, TiAlN Finish 1.772″ Thread Length, 4.3307″ OAL, Right Hand Flute, Right Hand Thread, Series PRO-892SF
Item #: 18156109
Brand: Cleveland
Model #: C89224
Product Specifications
| Material | HSS-E |
| Coating/Finish | TiAlN |
| Thread Size (Inch - 0 Decimals) | 9/16-12 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.7720 |
| Overall Length (Decimal Inch) | 4.3307 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Material Grade | M35 |
| Helix Angle | 38 |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Neck Length (Decimal Inch) | 0.7870 |
| Tapping Depth (mm) | 76.20 |
| Square Size (Decimal Inch) | 0.5000 |
| Flute Style | Spiral |
| Material Application | Alloy Steel; Stainless Steel; Cast Iron; Low Carbon Steel |
| Series | PRO-892SF |
| Helix Angle Range | 15 to 45 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Class Of Fit | 2B |
| Product Service Code | 5133 |
