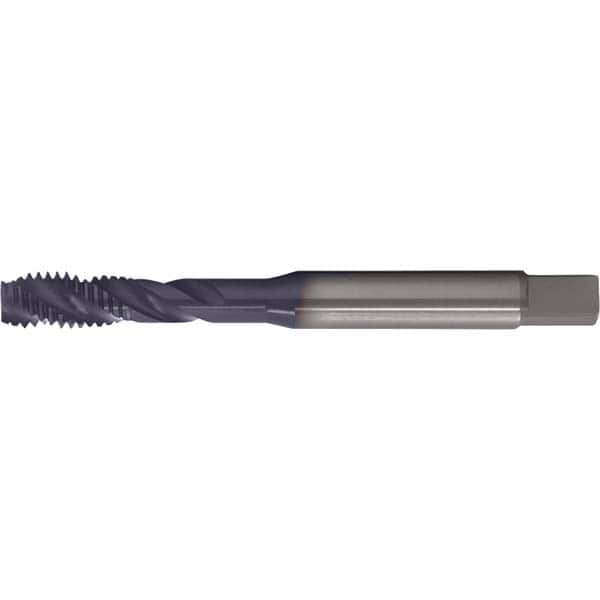

Spiral Flute Tap: M16 x 2.00, Metric, 4 Flute, Modified Bottoming, 6H Class of Fit, TiAlN Finish 2.087″ Thread Length, 4.3307″ OAL, Right Hand Flute, Right Hand Thread, Series PRO-892SF
Item #: 18156265
Brand: Cleveland
Model #: C89249
Product Specifications
| Coating/Finish | TiAlN |
| Thread Size (mm) | M16 x 2.00 |
| Thread Standard | Metric |
| Thread Pitch (mm) | 2.00 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 2.0870 |
| Overall Length (Decimal Inch) | 4.3307 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Material Grade | M35 |
| Helix Angle | 38 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Tapping Depth (mm) | 76.20 |
| Square Length (mm) | 14.22 |
| Square Length (Decimal Inch) | 0.5600 |
| Square Size (Decimal Inch) | 0.5600 |
| Flute Style | Spiral |
| Material Application | Alloy Steel; Stainless Steel; Cast Iron; Low Carbon Steel |
| Series | PRO-892SF |
| Helix Angle Range | 15 to 45 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Class Of Fit | 6H |
| Product Service Code | 5133 |
