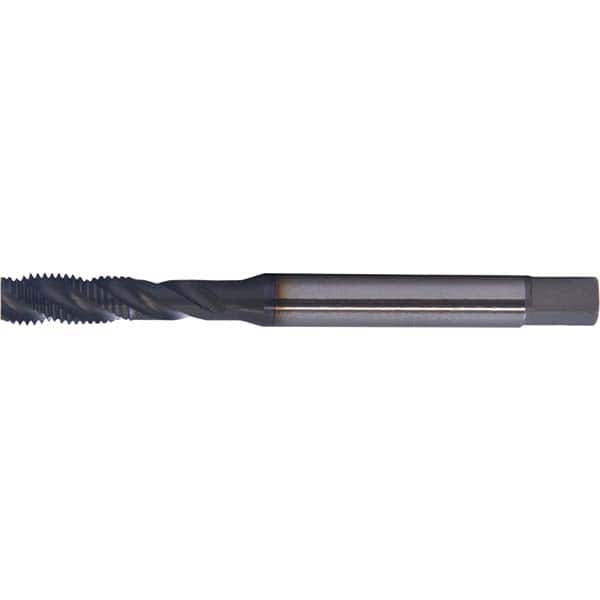

Spiral Flute Tap: M14 x 1.50, DIN, 3 Flute, Modified Bottoming, 6H Class of Fit, HSS-E, Hardlube Finish 1.772″ Thread Length, 4.3307″ OAL, Right Hand Flute, Right Hand Thread, Series PER-980SF
Item #: 18156562
Brand: Cleveland
Model #: C98046
Product Specifications
| Material | HSS-E |
| Coating/Finish | Hardlube |
| Thread Size (mm) | M14 x 1.50 |
| Thread Standard | DIN |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.7720 |
| Overall Length (Decimal Inch) | 4.3307 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Material Grade | M35 |
| Helix Angle | 38 |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Neck Length (Decimal Inch) | 0.7870 |
| Tapping Depth (Decimal Inch) | 3.0000 |
| Square Length (Decimal Inch) | 0.5000 |
| Flute Style | Spiral |
| Material Application | Alloy Steel; Stainless Steel; Cast Iron; Low Carbon Steel |
| Series | PER-980SF |
| Helix Angle Range | 15 to 45 |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Class Of Fit | 6H |
| Product Service Code | 5133 |
