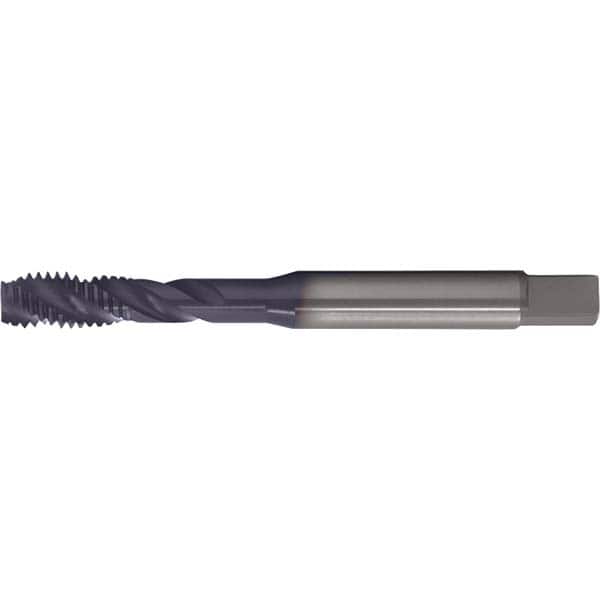

Spiral Flute Tap: 5/8-18, UNF, 4 Flute, Modified Bottoming, 2B Class of Fit, TiAlN Finish 2.087″ Thread Length, 4.3307″ OAL, Right Hand Flute, Right Hand Thread, Series PRO-892SF
Item #: 18156778
Brand: Cleveland
Model #: C89227
Product Specifications
| Coating/Finish | TiAlN |
| Thread Size (Inch - 0 Decimals) | 5/8-18 |
| Thread Standard | UNF |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 2.0870 |
| Overall Length (Decimal Inch) | 4.3307 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Material Grade | M35 |
| Helix Angle | 38 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Tapping Depth (mm) | 76.20 |
| Square Length (mm) | 14.22 |
| Square Length (Decimal Inch) | 0.5600 |
| Square Size (Decimal Inch) | 0.5600 |
| Flute Style | Spiral |
| Material Application | Alloy Steel; Stainless Steel; Cast Iron; Low Carbon Steel |
| Series | PRO-892SF |
| Helix Angle Range | 15 to 45 |
| Coolant Through | No |
| Teeth per Inch | 18 |
| Number Of Flutes | 4 |
| Class Of Fit | 2B |
| Product Service Code | 5133 |
