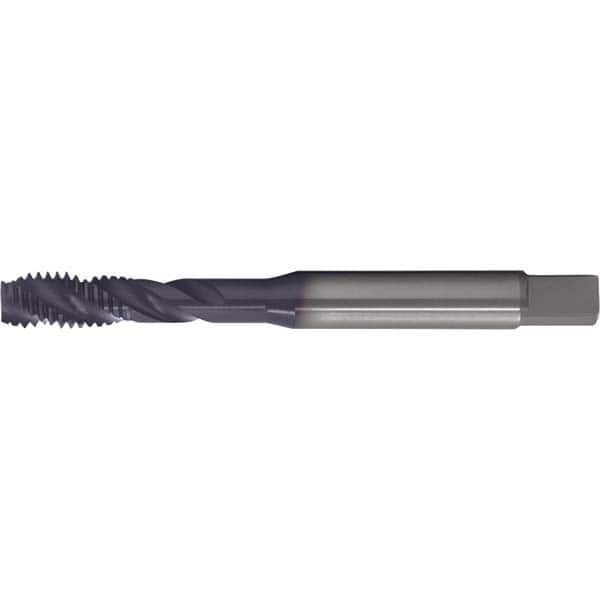

Spiral Flute Tap: M18 x 1.50, Metric Fine, 4 Flute, Modified Bottoming, 6H Class of Fit, HSS-E, TiAlN Finish 2.165″ Thread Length, 4.9213″ OAL, Right Hand Flute, Right Hand Thread, Series PRO-892SF
Item #: 18156802
Brand: Cleveland
Model #: C89250
Product Specifications
| Material | HSS-E |
| Coating/Finish | TiAlN |
| Thread Size (mm) | M18 x 1.50 |
| Thread Standard | Metric Fine |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 2.1650 |
| Overall Length (Decimal Inch) | 4.9213 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Material Grade | M35 |
| Helix Angle | 38 |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.5420 |
| Neck Length (Decimal Inch) | 1.0630 |
| Tapping Depth (mm) | 76.20 |
| Square Size (Decimal Inch) | 0.6300 |
| Flute Style | Spiral |
| Material Application | Alloy Steel; Stainless Steel; Cast Iron; Low Carbon Steel |
| Series | PRO-892SF |
| Helix Angle Range | 15 to 45 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Class Of Fit | 6H |
| Product Service Code | 5133 |
